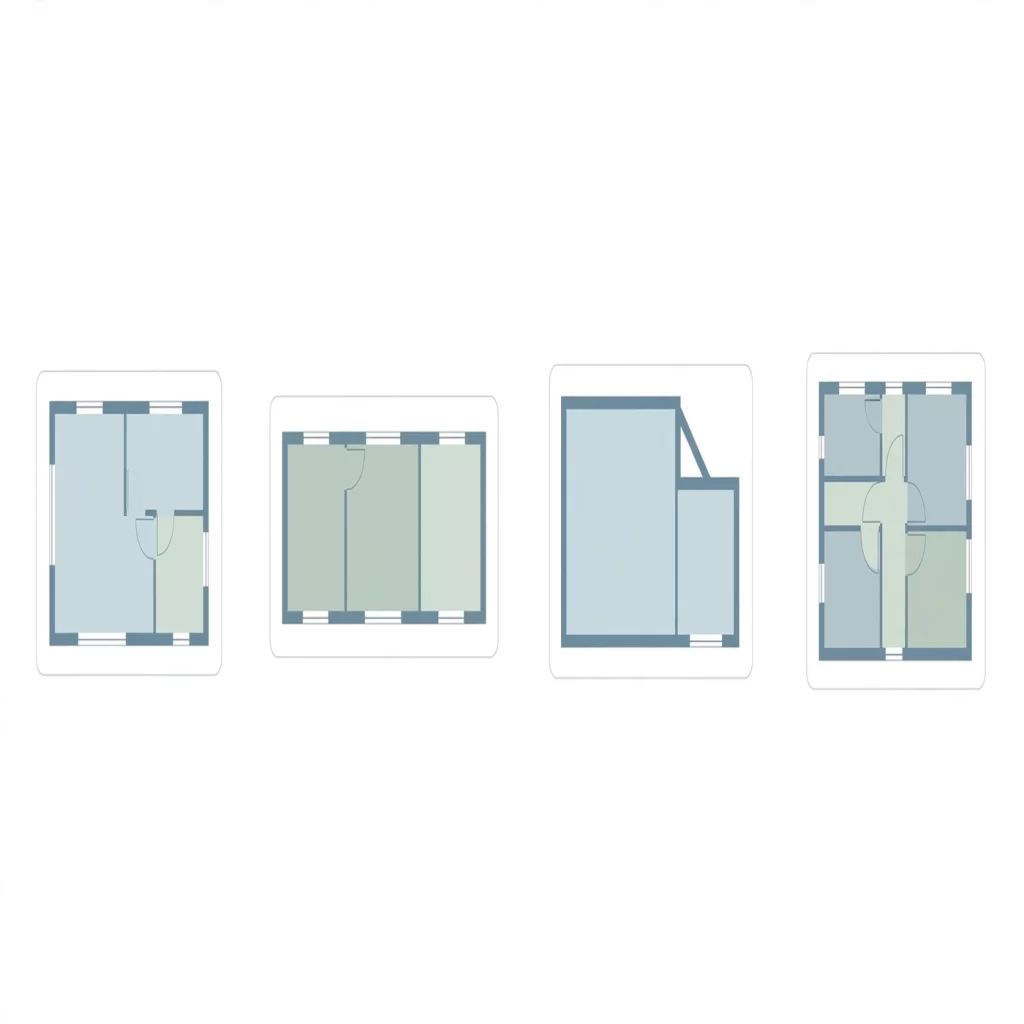

What Are Modern 3D Floor Plan Rendering Styles?

Modern 3D floor plan rendering styles are visual treatments that convert a flat 2D layout into a three-dimensional view using clean geometry, controlled color, and realistic or stylized lighting. Each style follows a distinct set of rules for line weight, material detail, shadow behavior, and furniture density. Together, those rules decide how fast a viewer understands the space.

If you need a refresher on the fundamentals, this guide on what a 3D floor plan rendering actually includes covers the basics. This article goes one step further and focuses on look and feel.

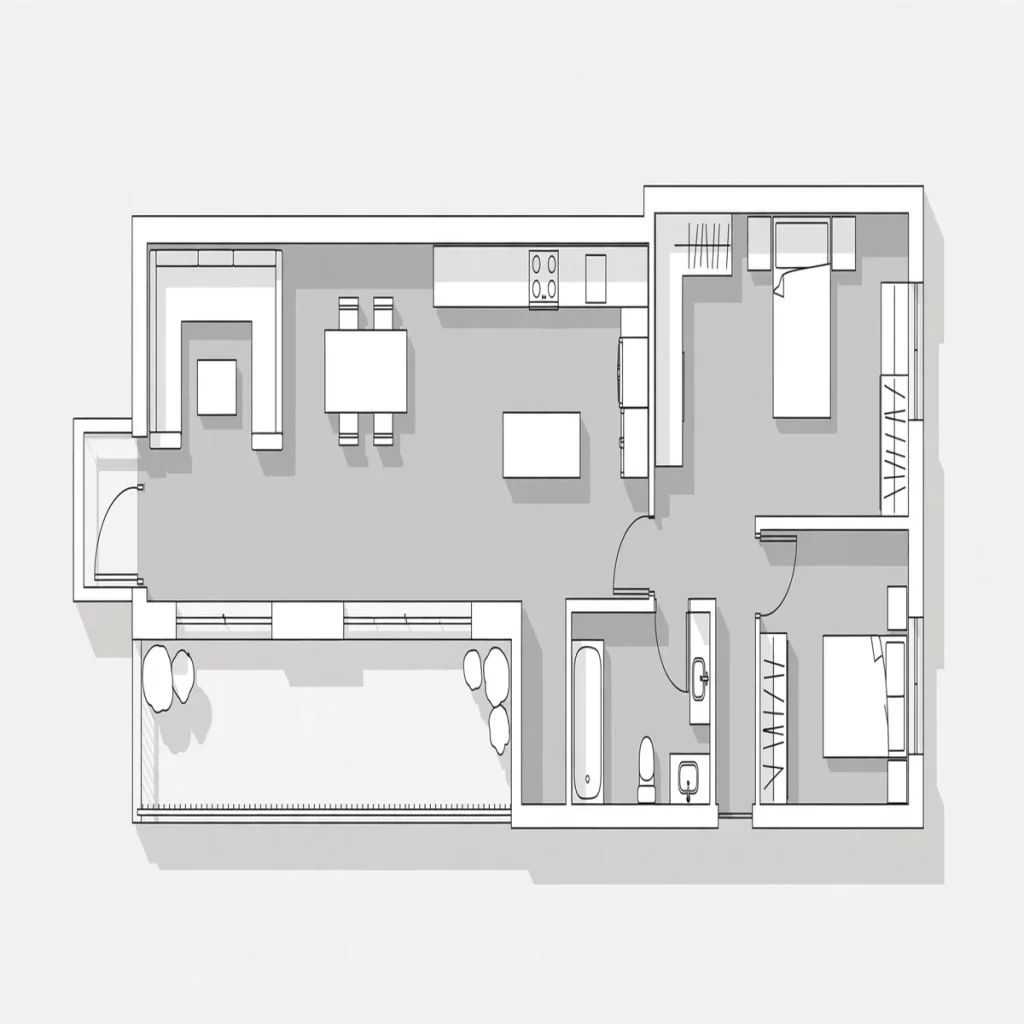

Quick answer: what defines a modern style?

• Clean linework: Walls, openings, and fixtures read clearly at a glance.
• Minimal color: A limited palette keeps attention on layout, not decoration.
• Controlled lighting: Soft, even shadows add depth without drama.
• Purposeful furniture: Only pieces that explain scale and function appear.
• Consistent scale and camera: The view supports measurement and comparison.

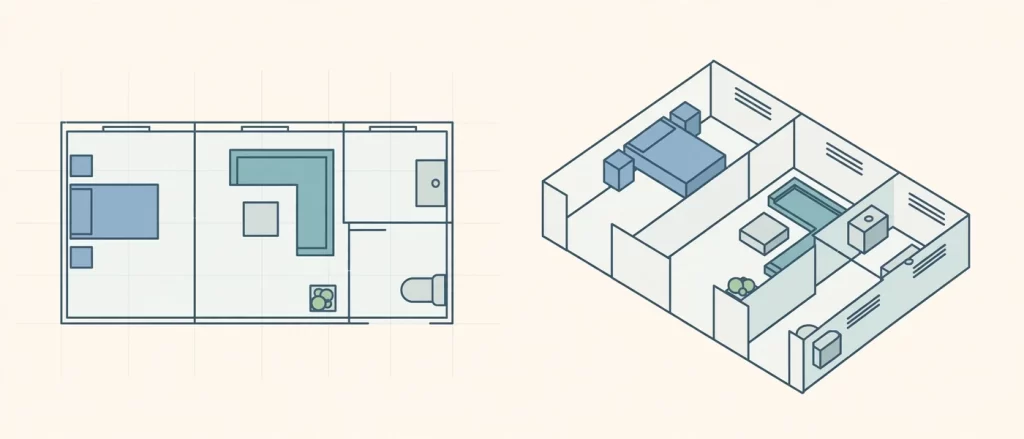

Why Style Choice Matters More Than Ever in 2026

Buyers, clients, and approval boards now scroll through dozens of visuals before they read a single paragraph. As a result, a floor plan has only seconds to communicate. A cluttered or over-saturated image loses that window, while a clear, modern one holds attention.

Moreover, search and social platforms reward visuals that load fast and read well on small screens. A mobile viewer cannot parse tiny textures or busy patterns. Clean compositions survive compression, and they still look sharp on a phone.

Here is what a well-chosen style does for your project:

1. Speeds up comprehension: Viewers grasp room relationships quickly.
2. Builds trust: Consistent, polished visuals signal professionalism.
3. Supports decisions: Clear plans reduce revision cycles and misunderstandings.
4. Improves brand recall: A recognizable look makes your listings or proposals memorable.
5. Scales across channels: One strong style adapts to web, print, and social formats.

Architects face a similar need for clarity. For example, the way architects communicate design intent through 3D plans depends heavily on a style that highlights circulation and proportion instead of surface decoration. Professional bodies such as the American Institute of Architects also emphasize clear visual communication throughout the design process.

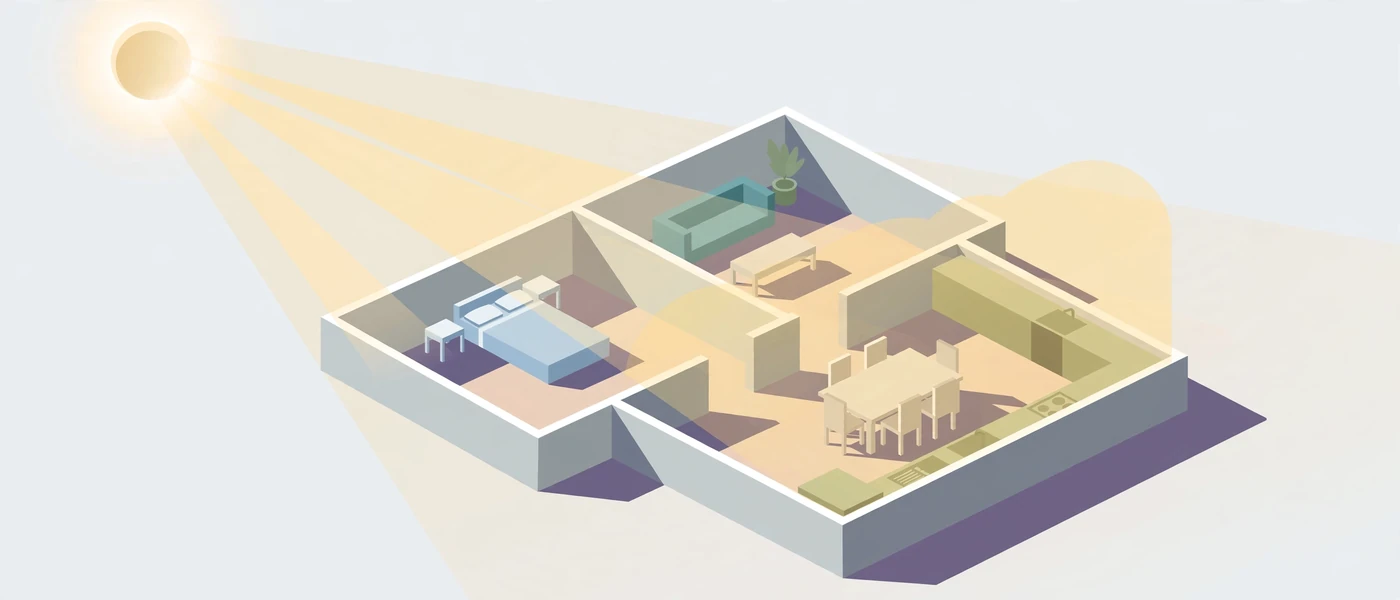

Core Principles Behind Clean-Lined 3D Floor Plans

Every contemporary style, from the sparest to the most lifelike, rests on a few shared principles. Understanding them helps you brief a studio and judge results with confidence.

Line Weight and Wall Hierarchy

Line weight tells the eye what matters. Thick wall edges anchor the plan, while thinner strokes describe doors, windows, and fixtures. Consequently, a viewer can trace the structure before noticing furniture.

Practical guidelines include:

• Keep exterior walls visibly heavier than interior partitions.
• Use thin, consistent strokes for cabinetry and appliances.
• Avoid outlines on every object, because too many lines create noise.

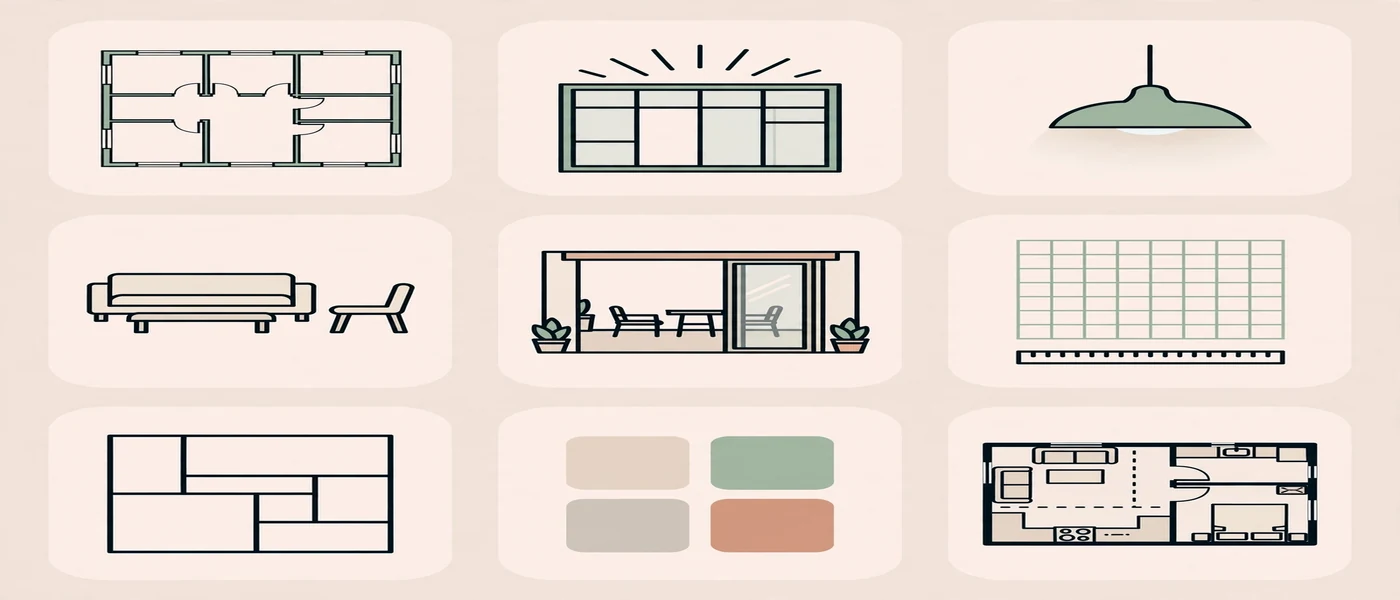

Orthographic and Axonometric Views

Most modern styles use a top-down orthographic view or a 30 to 45 degree axonometric angle. Both avoid perspective distortion, so room sizes stay comparable. In contrast, a strong perspective camera can exaggerate depth and mislead viewers about proportions.

Negative Space and Breathing Room

White or neutral space around the plan is not wasted. Instead, it frames the layout and improves legibility. Therefore, many top studios leave generous margins and avoid decorative backgrounds.

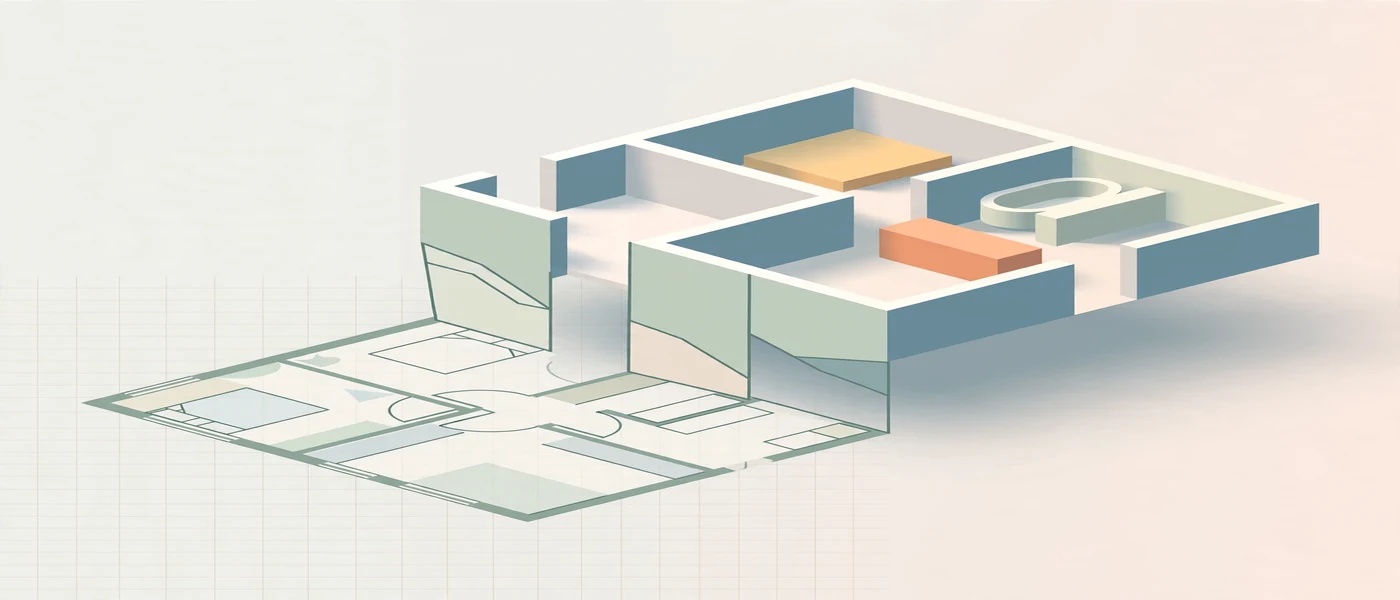

Light That Explains, Not Decorates

Soft ambient occlusion and gentle directional shadows give walls and furniture dimension. However, heavy contrast or colored light can distract. The best modern renders use light to clarify volume, then stop.

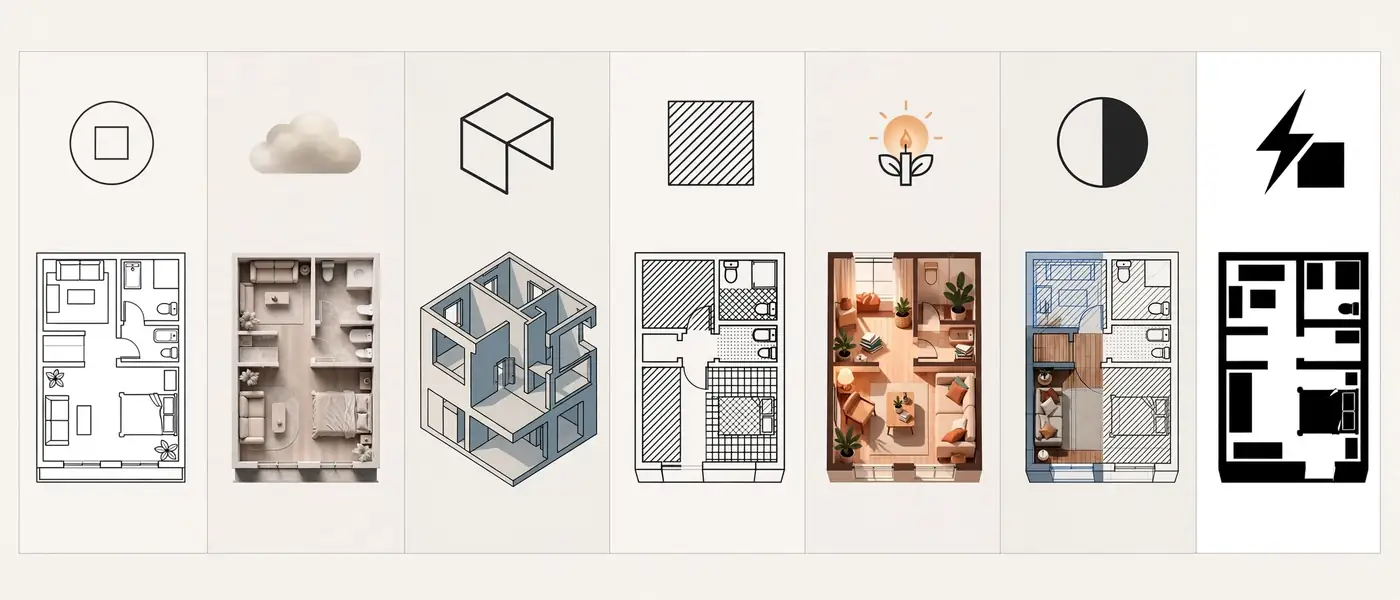

Seven Modern 3D Floor Plan Rendering Styles Compared

No single style suits every project. The table below summarizes the seven most requested approaches, so you can compare them quickly.

1. Minimalist Monochrome Style

This style strips a plan down to its essentials. White volumes, light gray floors, and thin dark lines produce a calm, architectural look. It is the closest cousin to a traditional drafted plan, yet it adds soft shadows for depth.

Strengths:

• Reads clearly in print and on screen.
• Keeps revisions fast and affordable.
• Focuses attention on layout and circulation.

Limitations:

• Offers little emotional warmth for buyers.
• May feel too technical for casual audiences.

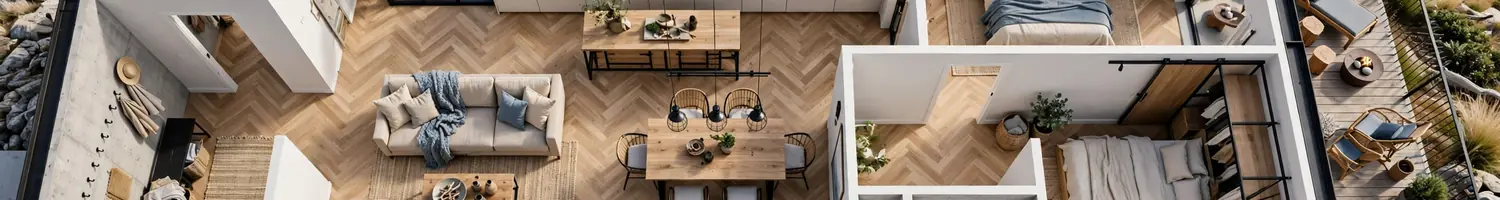

2. Soft-Neutral Photorealistic Style

Here, realistic materials meet a restrained palette. Oak floors, pale stone counters, and soft fabric tones create a believable home without overwhelming color. Because the palette stays quiet, the layout still dominates.

This approach has become a favorite for residential marketing. In particular, it helps buyers imagine daily life while keeping the plan legible. If your goal is listing performance, see how 3D floor plans change real estate listing results in practice.

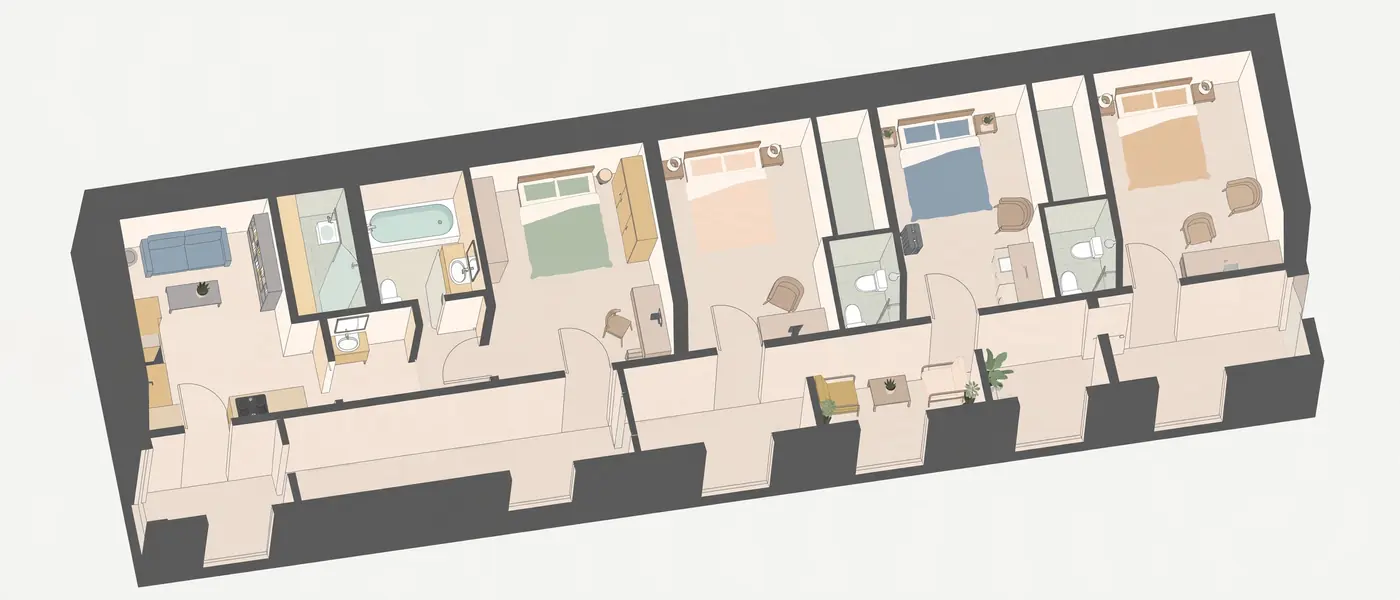

3. Cutaway Axonometric Style

The cutaway style slices walls at a consistent height and tilts the view. As a result, viewers see both floor layout and a hint of vertical volume. It works especially well for multi-room layouts, townhouses, and hospitality projects.

Key traits include:

• A fixed cut height, often at roughly waist or shoulder level.
• Visible wall thickness with a darker cut surface.
• Furniture that remains fully visible and properly scaled.

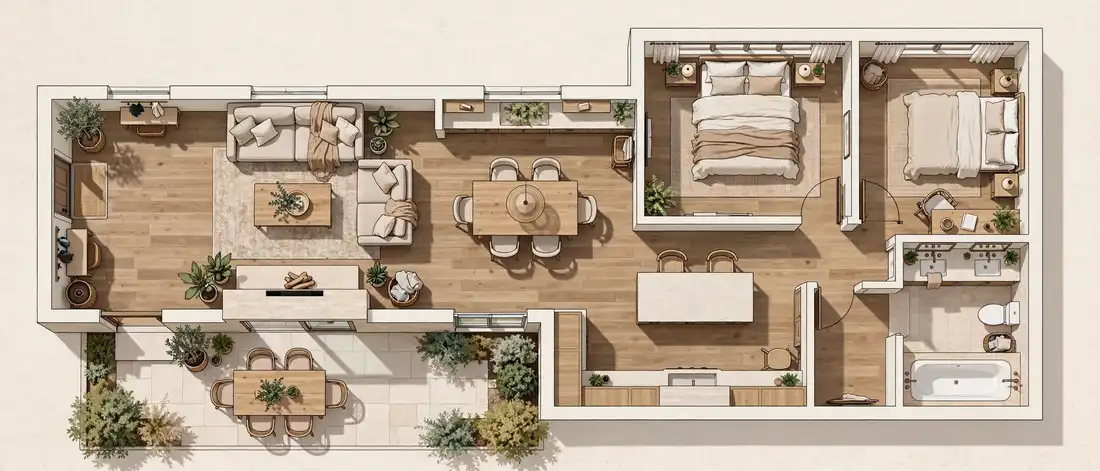

4. Schematic Line-and-Fill Style

Think of this style as a graphic design take on the floor plan. Flat fills, bold outlines, and a small palette create a crisp, poster-like image. It is quick to produce and easy to brand.

Additionally, it adapts well to brochures, signage, and wayfinding. However, it carries less material realism, so it suits audiences who care more about structure than finish.

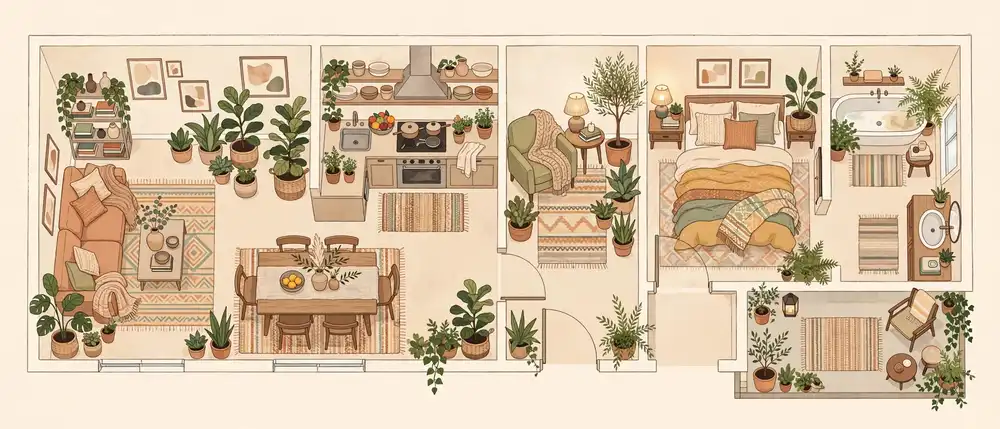

5. Warm Lifestyle Staged Style

Staged renders add rugs, plants, art, and layered textiles. The goal is emotional connection. Buyers see how a room could feel, not just how it measures.

That said, restraint still matters. Too much decor competes with the layout. Stage with intention and keep the palette cohesive.

6. Hybrid Schematic-Photoreal Style

Hybrid renders mix flat, simplified walls with realistic floors and furniture. This blend gives you clarity and warmth together. Furthermore, it is a smart compromise when your audience includes both technical reviewers and everyday buyers.

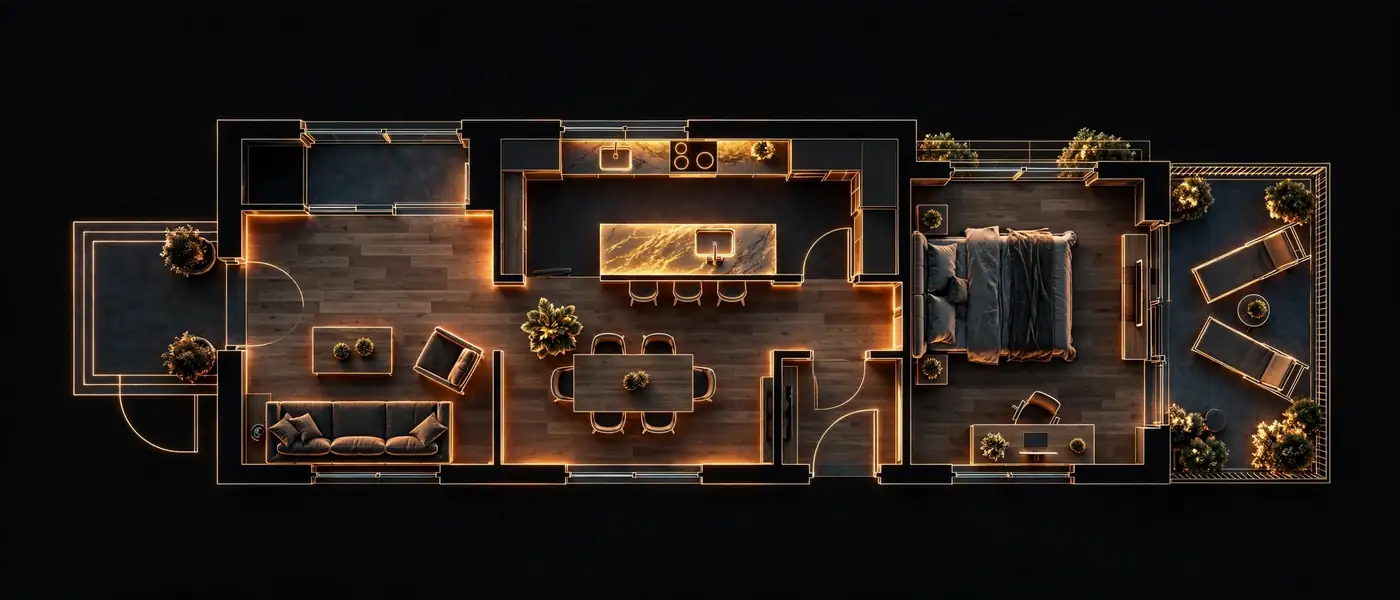

7. High-Contrast Presentation Style

Dark backgrounds with luminous plans create a premium, screen-first look. Pitch decks and investor presentations use it often. Nevertheless, it prints poorly in some cases, so check your final delivery format before committing.

Minimal Color: How to Build a Restrained 3D Floor Plan Palette

Minimal color is the quiet engine behind most modern 3d floor plan rendering styles. A tight palette reduces cognitive load and makes room boundaries obvious. Meanwhile, it gives the render a premium, editorial feel.

The 60-30-10 Approach

Designers often use a simple ratio to keep palettes balanced:

• 60 percent: A dominant neutral, such as warm white or pale gray, for walls and floors.
• 30 percent: A secondary tone, such as light oak or soft taupe, for large furniture and flooring.
• 10 percent: An accent, such as muted green or deep navy, for focal pieces.

This ratio keeps the plan calm while still offering visual interest.

Contrast and Accessibility

Minimal does not mean faint. Low contrast can make a plan unreadable, especially on small screens or for viewers with visual impairments. Therefore, check that text labels, room names, and dimension callouts meet contrast guidance from the Web Content Accessibility Guidelines. Good contrast also helps your visuals perform in search and social previews.

Material Choices That Support Minimalism

Some materials photograph and render better than others in a restrained palette:

1. Matte wood tones: They add warmth without glare.
2. Honed stone and concrete: They read as modern and stay neutral.
3. Soft textiles: Linen and wool textures add depth without strong color.
4. Black or brass accents: A few small touches sharpen the look.

Sample Palette Guide

What’s Trending in 3D Floor Plan Rendering Right Now

Styles evolve as software, buyer expectations, and design culture shift. Several clear trends are shaping how studios deliver plans today.

Warm Neutrals Replace Cold Grays

Cold gray interiors dominated for years. Now, warm whites, sand, and oatmeal tones are taking over. They feel welcoming, and they render beautifully under soft light.

Subtle Texture Over Heavy Pattern

Instead of bold patterns, designers favor tactile texture: bouclé, ribbed wood, limewash, and woven fibers. These details add realism at a glance, and they still keep the palette minimal.

AI-Assisted Workflows

Artificial intelligence now speeds up material suggestions, lighting setups, and variation testing. Even so, human art direction remains essential for accuracy and taste. For a deeper look at this shift, read how AI is changing the 3D floor plan production workflow.

Cutaway and Isometric Views Going Mainstream

Isometric and cutaway styles once belonged to technical presentations. Today, they appear in listings, brochures, and social posts. Their clarity and graphic appeal make them highly shareable.

Lifestyle Details With Restraint

Staging has moved away from clutter. A single plant, a stack of books, or a throw blanket now tells the story. This approach keeps the layout readable while adding warmth.

Interactive and Multi-Format Delivery

Clients increasingly request several outputs from one model: a hero image, a social crop, a print version, and sometimes an interactive view. Planning for multi-format delivery early saves time and keeps your visuals consistent. Market research from groups such as the National Association of Realtors regularly shows how central online visuals are to modern home searches.

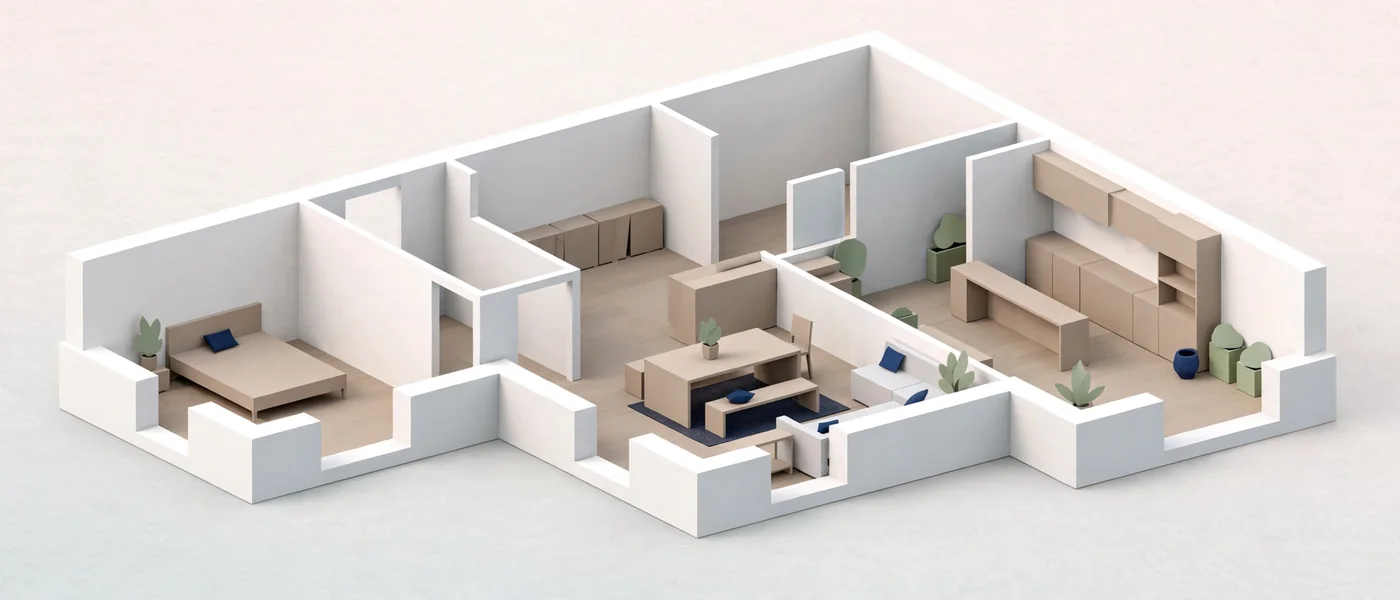

How to Choose the Right Modern 3D Floor Plan Rendering Style

The best style is the one that serves your audience and your goal. Start with the decision you want the viewer to make, then work backward.

Match Style to Audience

Consider Project Stage

Early concept plans benefit from lighter, faster styles such as minimalist or schematic. Later, marketing-ready projects deserve richer materials and staging. Hospitality and commercial layouts often need special handling, as seen in this look at hotel room and lobby 3D floor plan work.

Quick Decision Checklist

1. Define the goal: Approval, sale, pitch, or brochure?
2. Identify the viewer: Technical reviewer or everyday buyer?
3. Pick the detail level: Low, medium, or high?
4. Set the palette: Choose two neutrals and one accent.
5. Confirm formats: Print, web, social, or all three?

Step-by-Step: Briefing a Studio for a Modern Style

A clear brief prevents revision loops. Follow these steps for smoother results.

1. Share clean source files. Provide CAD drawings, PDFs, or clear sketches with dimensions. For help, see this guide on preparing CAD and PDF files for rendering.
2. Name your style. Reference one of the styles above, and attach two or three visual examples.
3. State your palette. List base, secondary, and accent colors, or share brand swatches.
4. Define the furniture level. Choose empty, lightly furnished, or fully staged.
5. Specify outputs. List sizes, aspect ratios, and file formats.
6. Review in rounds. Approve layout first, then materials, then final lighting.

Common Mistakes to Avoid With Modern 3D Floor Plan Styles

Even strong projects stumble on avoidable errors. Watch for these.

• Over-decorating: Too many accessories hide the layout.
• Using too many colors: Five or six hues break the minimal look.
• Ignoring scale: Oversized or undersized furniture misleads viewers.
• Choosing style over audience: A trendy look can still fail a technical reviewer.
• Skipping contrast checks: Light gray text on white becomes unreadable on phones.
• Mixing inconsistent styles: Different line weights or lighting across a set feels sloppy.
• Forgetting file formats: A dark presentation style may print poorly.
• Rushing the brief: Vague direction leads to rounds of avoidable revisions.

Fixing these early saves budget and time. Likewise, choosing the right partner matters, so review this advice on how to choose a 3D floor plan rendering company before you commit.

Expert Tips for Polished, Modern Results

Experienced visualization artists rely on a few habits that elevate any style.

• Limit the palette to three hues. Fewer colors look more premium.
• Keep one light direction. Consistent shadows feel natural and professional.
• Use real-world dimensions for furniture. Accurate scale builds credibility.
• Label with care. Use clean sans-serif type, and keep text sizes legible on mobile.
• Test small first. View your render at thumbnail size to confirm it still reads.
• Build a style guide. Reuse the same line weights, palette, and camera across projects.
• Show real experience. Include project notes or before-and-after samples to demonstrate expertise and build trust with viewers.

Frequently Asked Questions About Modern 3D Floor Plan Rendering Styles

What are the most popular modern 3d floor plan rendering styles?

The most popular modern 3d floor plan rendering styles are minimalist monochrome, soft-neutral photorealistic, cutaway axonometric, schematic line-and-fill, warm lifestyle staged, hybrid schematic-photoreal, and high-contrast presentation. Each one balances clarity, color, and detail differently. Your audience and goal should guide the choice.

How does minimal color improve a 3D floor plan?

Minimal color reduces visual noise, so viewers can read room boundaries and circulation faster. A limited palette also looks more professional and prints more reliably. In short, it keeps attention on the layout instead of the decoration.

Which rendering style is best for real estate listings?

Soft-neutral photorealistic and hybrid schematic-photoreal styles usually perform best for listings. They show realistic materials while keeping the layout easy to read. Cutaway views also work well when you want a more graphic, shareable image.

Can I combine different styles in one project?

Yes, but keep the combination intentional. For example, you might use a minimalist plan for approvals and a staged version for marketing. Just maintain consistent line weights, scale, and palette within each deliverable set.

What is a good color palette for a modern 3D floor plan?

A good palette uses two neutrals and one accent, following a rough 60-30-10 balance. Warm white, light oak, and a muted green or navy accent form a reliable starting point. Always check contrast so labels remain readable on small screens.

What files do I need to start a 3D floor plan rendering project?

Most studios accept CAD files, PDFs, or clear hand sketches with dimensions. Add style references, a palette, and your preferred furniture level to speed up the process. Clean, accurate source files lead to faster and more precise results.

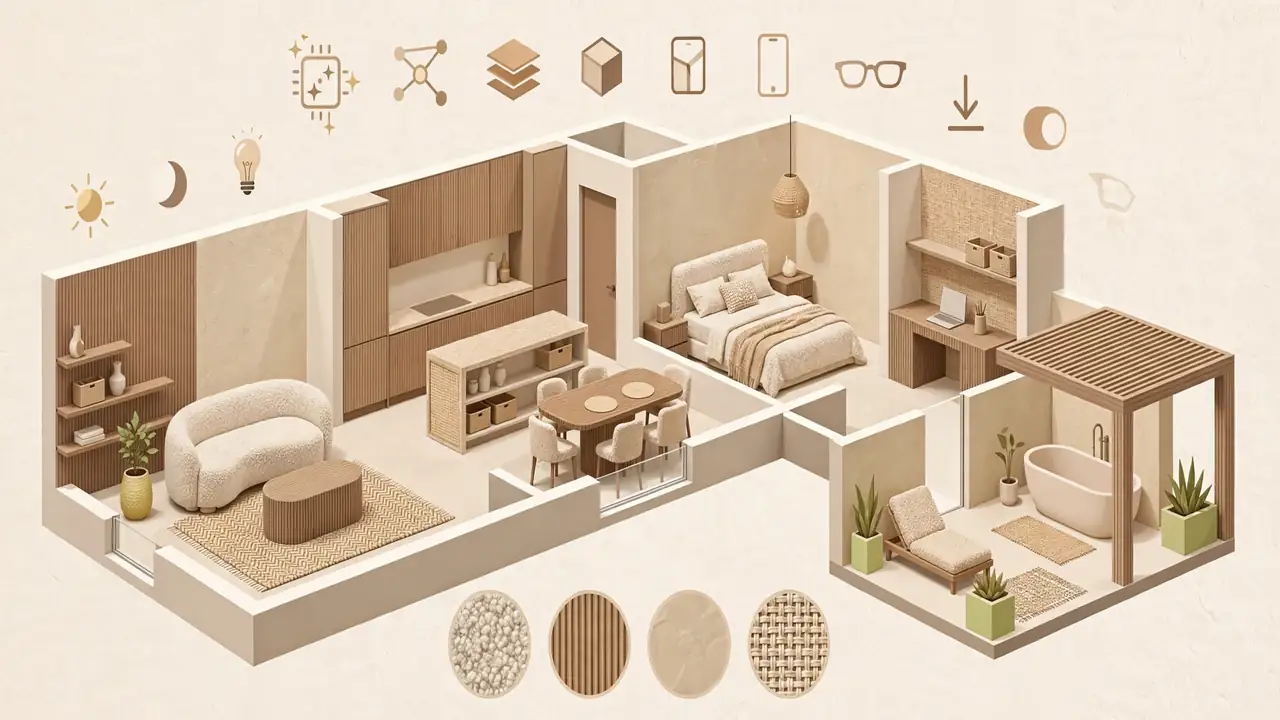

Conclusion: Choose a Style That Clarifies, Then Commit

The strongest modern 3d floor plan rendering styles share one goal: they make space easier to understand. Clean lines guide the eye, minimal color removes distraction, and thoughtful light adds just enough depth. Whether you lean toward minimalist monochrome, soft photorealism, or a cutaway view, consistency and audience fit will decide your results.

To recap, start with your viewer and your goal. Next, choose a style and a tight palette, then brief your studio with clean files and clear references. Finally, keep your look consistent across every project so your brand stays recognizable.

Ready to see your layouts in a sharp, contemporary style? Get a custom 3D floor plan rendering quote and turn your plans into visuals that win approvals and attract buyers.

Turn 2D Plans Into 3D Floor Plan Visuals →

If you have ever posted a listing photo and watched it sink without a single comment, you already know the problem: photos alone rarely explain how a home actually works. A kitchen photo shows finishes, not flow. A bedroom photo shows staging, not square footage relative to the hallway. This is where a well-produced 3D rendering services approach changes the outcome – it turns a static floor plan into a marketing asset that does the explaining for you, before a buyer ever books a showing.

In this guide, you will learn exactly how to plan, produce, and publish 3D floor plan renderings across Instagram, Facebook, TikTok, LinkedIn, and Pinterest, along with the formats, common mistakes, and expert workflows that separate high-performing real estate social accounts from the rest.

What is 3D Floor Plan Rendering for Social Media?

3d floor plan rendering for social media refers to converting a property’s architectural floor plan into a visually rich, three-dimensional (or 2.5D isometric) graphic that is specifically formatted, cropped, and captioned for platforms like Instagram and TikTok.

A few defining traits separate a “social-ready” rendering from a standard architectural deliverable:

• Square or vertical aspect ratio (1:1 for feed posts, 9:16 for Reels and Stories)
• Simplified labeling – room names and square footage, not technical dimensions
• Brand-consistent color palette matching the agency or developer’s identity
• Motion-friendly layers so the same render can be animated for Reels
• Bite-sized information density – one idea per slide, not an entire blueprint crammed into one frame

Because attention spans on social platforms are measured in seconds, the rendering itself has to do more communicating with less clutter than a printed floor plan ever needed to.

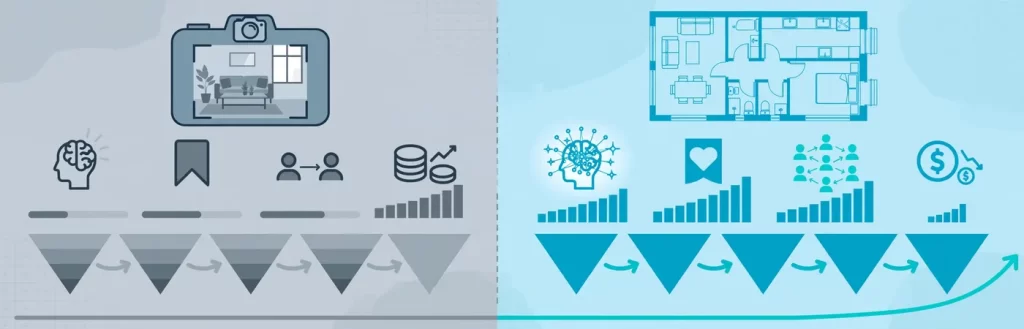

Why Floor Plan Renderings Outperform Standard Listing Photos

Several factors consistently drive stronger performance for rendered floor plan content:

1. Instant spatial comprehension. Viewers grasp room relationships without needing to visit the property.
2. Higher save rate. Buyers researching a purchase decision save layout posts to revisit later, and saves are a strong ranking signal on Instagram and Pinterest.
3. Shareability within households. A floor plan is the one asset a buyer forwards to a partner or roommate to get a second opinion.
4. Lower production cost per engagement. One rendering can be repurposed into five or more pieces of content (static post, carousel slide, Reel background, Story sticker overlay, Pinterest pin).
5. Works across the funnel. Floor plans are equally effective for top-of-funnel brand awareness and bottom-of-funnel decision-making content.

Quick answer: Floor plan renderings outperform standard photos on social media primarily because they reduce the mental effort needed to understand a property, which directly increases saves, shares, and comments – the three engagement signals most platform algorithms weight heavily.

Best Social Platforms for 3D Floor Plan Rendering Content

Not every platform rewards this content type equally. Here is how the major channels compare.

Content Formats: Static Posts, Carousels, Reels, and Stories

Different formats serve different stages of the buyer’s attention span. A well-rounded 3d floor plan rendering for social media campaign typically uses all four.

Static Feed Posts

A single, high-resolution rendered floor plan with minimal text overlay works best as a scroll-stopping hero image. Keep labeling to essentials: bedroom count, bathroom count, and total square footage.

Carousel Posts

Carousels allow you to break a floor plan into a narrative:

• Slide 1: Full floor plan overview
• Slide 2: Zoomed detail of the primary suite
• Slide 3: Kitchen and living flow
• Slide 4: Outdoor/patio connection
• Slide 5: Call-to-action slide with agent contact details

Reels and Short-Form Video

Animate the camera “flying” across the rendered plan, revealing room labels as it moves. This format performs particularly well for hotel room and lobby layouts and multi-unit developments where a static image cannot capture the full scale.

Stories and Highlights

Use Stories for time-sensitive updates (open house reminders, price changes) with the floor plan as a supporting background graphic, and save high-performing renders into a permanent “Floor Plans” Highlight for future visi

Step-by-Step: Turning a Floor Plan Into a Social Campaign

1. Start with a clean architectural source file. Whether it is a CAD file, PDF, or hand sketch, quality output depends on quality input – see our guide on preparing CAD, PDF, and sketch files for rendering before submitting to your rendering partner.
2. Choose a visual style. Photorealistic 3D, flat 2.5D isometric, or minimalist line-art – each suits a different brand tone.
3. Commission platform-specific crops. Request 1:1, 4:5, and 9:16 exports in the same brief to avoid re-ordering later.
4. Add brand overlays. Logo watermark, agent headshot, and a consistent color accent build recognition over repeated posts.
5. Write captions that answer a question. “How much natural light does the primary bedroom get?” performs better than a generic “New listing!” caption.
6. Schedule around peak engagement windows. Real estate content on Instagram typically performs best in the early evening and weekend mornings.
7. Repurpose across platforms. One rendering asset should be reformatted, not recreated, for each channel.

Comparison: 2D Floor Plans vs. 3D Rendered Floor Plans on Social Media

Common Mistakes to Avoid

Even experienced marketing teams run into avoidable errors when producing this content:

• Overloading a single slide with every dimension and label. Simplicity wins on mobile screens.
• Ignoring platform-specific aspect ratios, which forces awkward automatic cropping.
• Skipping brand consistency, making the content forgettable across a feed.
• Publishing without a caption hook, leaving engagement entirely up to the visual.
• Using outdated or unrevised floor plans that no longer match the finished property – a mistake covered in more depth in our piece on choosing a 3D floor plan house rendering company.
• Not tracking which formats actually convert, leading to repeated spend on underperforming content types.

Expert Tips for Higher Engagement

• Pair the floor plan with a matching walkthrough video so viewers can move between the 2D-mental-map and the 3D-real-feel experience.
• Use consistent color-coding across a listing’s full content series (e.g., always highlighting the primary suite in the same accent color).
• Add a “before and after” slide for renovation or staging projects; renovation-adjacent content historically drives strong Pinterest traffic.
• Lean on data, not just design. Architects and design-forward brands can build credibility by pairing renderings with the same intent-driven approach used when architects communicate design intent through 3D floor plan rendering.
• Test captions as questions, not statements – question-based captions tend to draw more comments, which social algorithms reward with extended reach.

Tools and Deliverables You Should Request From Your Rendering Partner

When briefing a rendering studio or in-house designer for social-first floor plan content, ask for:

• Source files in layered PSD or editable vector format
• Pre-cropped exports for 1:1, 4:5, and 9:16
• A brand-matched color variant set
• Transparent-background versions for overlay use in Reels/Canva
• A short animated MP4/MOV version for Reels and TikTok

For developers and custom builders specifically, this content strategy also directly supports sales conversations – a theme explored further in how custom home builders use 3D floor plan rendering to win clients and in the broader data behind how 3D floor plan rendering transforms real estate listing performance.

Frequently Asked Questions

What is 3d floor plan rendering for social media?

It is the process of converting an architectural floor plan into a visually simplified, platform-formatted graphic – typically 1:1, 4:5, or 9:16 – designed to help social media audiences quickly understand a property’s layout.

Which social platform performs best for floor plan content?

Instagram generally performs best for carousels and Reels, while Pinterest offers the longest content lifespan for design-focused searches. LinkedIn works well for B2B audiences such as architects and developers.

Do I need a photorealistic render, or is a simplified 2.5D version enough?

Either can work, depending on brand tone. Photorealistic renders build aspirational appeal, while simplified 2.5D or line-art versions are often easier to read quickly on mobile.

How often should I post floor plan content?

Most active real estate accounts include floor plan visuals in roughly one out of every four to five posts, balanced with lifestyle photography and video walkthroughs.

Can one rendering be reused across multiple platforms?

Yes. A single source rendering, exported in multiple aspect ratios and with platform-specific captions, can support Instagram, TikTok, Pinterest, Facebook, and LinkedIn without needing a full redesign for each.

Conclusion

3d floor plan rendering for social media is no longer a nice-to-have for real estate marketing – it is one of the most efficient ways to turn a single architectural asset into weeks of high-performing, multi-platform content. By pairing the right format with the right platform, avoiding common labeling and cropping mistakes, and briefing your rendering partner for reusable, layered deliverables, you can build a content pipeline that consistently earns saves, shares, and qualified inquiries.

Ready to turn your next listing’s floor plan into scroll-stopping social content? Get a custom 3D floor plan rendering quote from Jytor and start building a content library that works across every platform.

Turn Floor Plans Into Marketing Content →

If you have watched a rendering studio’s turnaround time shrink from ten days to two without an obvious drop in quality, you have already seen this shift in action. That is not a coincidence – it is the direct result of AI models trained on thousands of architectural datasets now sitting inside the 3D rendering services pipeline that studios like ours use every day. What used to require a dedicated 3D artist manually placing every wall, window, and light source now starts with an algorithm doing the heavy lifting, leaving human artists free to focus on art direction and final polish.

This article walks through what AI in 3D floor plan rendering actually means, how the workflow has changed step by step, where the technology still needs a human hand, and what architects, builders, and real estate marketers should know before adopting it.

What is AI in 3D Floor Plan Rendering?

AI in 3D floor plan rendering is the application of machine learning – specifically computer vision, generative adversarial networks (GANs), diffusion models, and neural radiance fields (NeRFs) – to the process of converting 2D architectural data into finished 3D visuals.

In practical terms, it covers four areas:

• Automated floor plan digitization – converting scanned sketches, CAD files, or PDFs into clean vector floor plans using computer vision.
• Generative layout and furniture placement – AI models suggesting or auto-populating furniture, fixtures, and decor based on room type and dimensions.
• AI-accelerated rendering – denoising and upscaling algorithms that produce photorealistic output in a fraction of traditional ray-tracing time.
• Style and material generation – diffusion-based tools that generate finishes, textures, and lighting moods from text or reference-image prompts.

None of these tools eliminate the rendering artist. Instead, they compress the mechanical parts of the workflow so more time goes into design judgment.

How AI Is Transforming the Traditional 3D Floor Plan Rendering Workflow

The traditional 3D floor plan rendering workflow followed a fairly rigid sequence: import CAD or sketch data, manually model walls and openings, place furniture by hand, set up lighting rigs, run ray-traced renders, and correct errors in post. Each stage was time-intensive and heavily dependent on the modeler’s manual precision.

AI has restructured that sequence in five specific ways.

1. Automated Floor Plan Generation From Scans and Sketches

Instead of a technician manually tracing over a scanned sketch, computer vision models now detect walls, doors, windows, and dimensions directly from a raster image or PDF. This is especially useful for teams that receive rough hand-drawn sketches, which is common when architects use 3D floor plan rendering to communicate design intent early in a project before a formal CAD file exists.

The model outputs a clean vector floor plan with wall thicknesses and room boundaries already labeled, cutting the digitization stage from hours to minutes.

2. AI-Assisted Furniture and Object Placement

Generative layout models trained on thousands of interior scenes can now suggest furniture placement that respects circulation paths, door swings, and typical room proportions. A rendering artist reviews and adjusts the suggested layout rather than building it from a blank canvas.

This matters most for high-volume projects such as multifamily unit renders or hotel room and lobby 3D floor plan rendering, where dozens of similar-but-not-identical units need furnished layouts quickly.

3. Real-Time Rendering and AI Denoising

Traditional ray tracing calculates how light bounces through a scene pixel by pixel, which is computationally expensive. AI denoising models now predict a clean, noise-free image from a partially rendered frame, cutting render times from hours to minutes without a visible drop in fidelity. Hardware vendors including NVIDIA’s real-time ray tracing research have documented this exact shift toward AI-assisted denoising in production rendering pipelines.

4. AI-Powered Material and Lighting Simulation

Instead of manually adjusting reflectance values and light temperatures for every material, AI lighting tools can analyze a scene and recommend physically accurate settings based on the intended time of day, mood, or region-specific daylight conditions. This is a meaningful time-saver for exterior-to-interior daylighting studies.

5. Style Transfer and Photorealistic Texture Generation

Diffusion-based generative tools can now apply a specific design style – Scandinavian, industrial, coastal – across an entire floor plan render from a short text prompt or reference image, generating consistent flooring, wall finishes, and furniture textures in one pass rather than sourcing each texture manually.

Traditional Workflow vs AI-Enhanced Workflow

Key AI Technologies Powering the Modern Rendering Workflow

Step-by-Step: How an AI-Enhanced 3D Floor Plan Rendering Workflow Actually Works

1. Data intake – The studio receives CAD files, PDFs, or hand sketches, along with photos or reference material where relevant. For guidance on preparing these files correctly, see how to prepare and submit CAD, PDF, and sketch files for 3D house floor plan rendering.
2. AI digitization – Computer vision models convert raw input into a clean, dimensioned vector floor plan.
3. Layout generation – AI suggests furniture placement, fixtures, and traffic flow based on room type and square footage.
4. Artist review – A human rendering artist reviews the AI-generated layout, corrects errors, and applies design intent that the model cannot infer on its own.
5. Material and lighting pass – AI recommends physically accurate materials and lighting; the artist fine-tunes for brand or client preference.
6. AI-accelerated render – The scene renders using denoising and upscaling models rather than a full brute-force ray trace.
7. Quality control and delivery – Final output is checked against the client brief and delivered in the required format and resolution.

Benefits of AI in 3D Floor Plan Rendering

For architects, builders, and real estate marketers, the shift toward AI-assisted rendering delivers measurable gains:

• Faster turnaround – digitization and rough layout stages that once took days now take hours.
• Lower revision costs – AI-generated base layouts mean fewer manual rebuilds when a client requests changes.
• Scalability for high-volume projects – multifamily and hospitality projects with dozens of similar units benefit most, including projects similar to those covered in how custom home builders use 3D floor plan rendering to win clients.
• More consistent output quality – style-transfer tools reduce variation between renders produced by different artists on the same project.
• Better listing performance – faster delivery means real estate teams can get renders live sooner, which directly affects how 3D floor plan rendering transforms real estate listing performance.

Common Mistakes When Adopting AI in 3D Floor Plan Rendering

Studios and clients new to AI-assisted workflows tend to run into the same handful of issues:

• Treating AI output as final rather than a starting point that still needs human review for code compliance and design accuracy.
• Feeding low-quality source scans into digitization models, which produces inaccurate wall detection and wasted rework.
• Over-relying on style transfer for finishes that need to match a specific real-world material sample, resulting in mismatched textures.
• Skipping human lighting review, which can leave AI-recommended lighting technically accurate but stylistically flat.
• Assuming pricing drops proportionally with AI adoption – project scope and square footage still drive cost, a point covered in more depth in does 3D floor plan rendering pricing scale with square footage.

Expert Tips for Getting the Most Out of AI-Powered Rendering

• Always submit the highest-resolution source files available; AI digitization accuracy depends directly on input quality.
• Use AI-generated layouts as a first draft, then have an experienced artist adjust for code-compliant clearances and realistic furniture scale.
• Pair AI denoising with a final manual lighting pass for hero shots that will be used in marketing materials.
• Standardize style-transfer prompts across a project so unit-to-unit renders stay visually consistent.
• Keep a human-in-the-loop QC step before delivery, regardless of how automated the earlier stages were.

Where AI Still Falls Short

AI in 3D floor plan rendering is not a fully autonomous replacement for skilled rendering artists.

Current limitations include:

• Difficulty interpreting ambiguous or poorly scanned hand sketches without human correction.
• Inconsistent handling of highly customized architectural details, such as irregular roof geometry or bespoke millwork.
• Limited ability to infer true design intent – AI can suggest a plausible furniture layout, but it cannot know a client’s specific brand guidelines or lifestyle preferences.
• Occasional texture artifacts in diffusion-generated materials that require manual retouching before client delivery.

Independent research from groups tracking AI adoption in architecture, engineering, and construction, including McKinsey’s analysis of generative AI in the built environment, points to the same conclusion: AI accelerates production stages, but human oversight remains essential for accuracy and design quality.

The Future of AI in 3D Floor Plan Rendering

The next phase of this shift is likely to bring tighter integration between AI layout generation and real-time rendering engines, allowing clients to see photorealistic previews of layout changes almost instantly rather than waiting for a full re-render. Expect deeper integration with BIM data, more accurate code-compliance checking built into AI layout suggestions, and continued improvement in texture fidelity as diffusion models train on larger architectural datasets.

For a foundational look at how floor plan rendering works before AI enters the picture, see what is 3D floor plan rendering.

Frequently Asked Questions

What is AI in 3D floor plan rendering?

AI in 3D floor plan rendering is the use of machine learning models – including computer vision, GANs, and diffusion models – to automate floor plan digitization, furniture layout, lighting, and photorealistic rendering.

Does AI replace human rendering artists?

No. AI accelerates mechanical stages like digitization and rough layout generation, but human artists still handle design judgment, code-compliance review, and final quality control.

How much faster is an AI-enhanced rendering workflow?

Digitization and rough layout stages that once took days can now take hours, and AI denoising typically cuts render times from hours per frame to minutes.

Is AI-generated furniture placement accurate enough to use directly?

AI-suggested layouts are a strong starting point but should always be reviewed by a rendering artist for realistic scale, clearances, and design intent.

Does using AI in 3D floor plan rendering lower project cost?

It can reduce revision costs and turnaround time, but overall pricing still depends primarily on project scope and square footage rather than the production method alone.

Conclusion

AI in 3D floor plan rendering has changed the workflow from a linear, manual production line into a faster, human-supervised pipeline where machine learning handles digitization, layout suggestions, and rendering acceleration while artists focus on design judgment and final quality control. The result is shorter turnaround times, more consistent output, and lower revision costs – without removing the expertise that makes a render actually usable for a client. If your team is ready to see this workflow in action, request a project quote from Jytor’s rendering team and get a turnaround timeline for your next floor plan project.

Get Your 3D Floor Plan Rendering Quote →

If you’ve ever searched for a 3D house floor plan rendering services partner and felt overwhelmed by portfolios that all look the same, you’re not alone. Nearly every studio claims “photorealistic” results and “fast turnaround,” but the gap between a mediocre render and a listing-ready visual is enormous – and it usually only becomes obvious after you’ve already paid a deposit. This guide walks through the exact questions experienced architects, builders, and real estate marketers ask before they hire a 3D floor plan rendering company, along with the red flags that separate reliable studios from risky ones.

What is a 3D Floor Plan House Rendering Company?

A 3D floor plan house rendering company converts 2D architectural drawings, CAD files, or hand sketches into dimensionally accurate, photorealistic 3D visualizations. These visuals show furniture placement, material finishes, lighting, and spatial flow in a way flat blueprints simply cannot.

Unlike a general graphic design studio, a specialized rendering firm typically employs trained 3D artists who understand:

• Architectural scale and proportion
• Interior design principles (furniture layout, color theory, lighting)
• Real estate marketing standards
• Software pipelines built specifically for architectural visualization

This distinction matters. Hiring a generalist design agency for floor plan rendering often produces visuals that look nice but misrepresent room dimensions or ignore structural realities – a costly mistake if the renders are used for permitting, investor presentations, or pre-construction sales.

Why Choosing the Right 3D Floor Plan Rendering Partner Matters

The stakes of this decision are higher than most buyers expect. A poorly rendered floor plan can:

• Misrepresent square footage or room proportions, creating legal or trust issues with buyers
• Delay a property listing by weeks if revisions drag on
• Undermine a pitch deck or investor presentation with amateur visuals
• Cost significantly more in rework than the original render would have cost done right

On the other hand, working with an experienced studio consistently improves buyer engagement. Listings with 3D visuals tend to hold attention longer and generate more inquiries than those with flat floor plans alone, which is why builders and real estate marketing teams increasingly treat rendering as a core part of the sales process rather than an afterthought.

Additionally, well-produced floor plan renders help architects communicate design intent far more clearly to clients who aren’t trained to read technical blueprints – reducing costly miscommunication during the design approval phase.

The 8 Questions You Must Ask Before Hiring a 3D Floor Plan Rendering Company

Use these eight questions as a screening checklist before you request a quote or sign a contract.

1. What Software and Rendering Technology Do You Use?

Ask specifically which tools the studio uses for modeling and rendering – common industry standards include 3ds Max, SketchUp, Blender, V-Ray, Corona Renderer, and Lumion. A studio that can’t name its own pipeline, or that relies solely on AI-generated “instant render” tools, usually can’t guarantee dimensional accuracy.

Quick check: Ask them to explain, in plain language, how they convert your CAD or PDF file into a 3D model. A credible studio should describe a clear process, not a vague “we use AI” answer.

2. Can I See Examples of Similar Projects?

Portfolio relevance matters more than portfolio size. A studio with hundreds of glossy exterior renders may have never produced an accurate interior floor plan for a three-bedroom suburban home. Request:

• Samples from the same property type (residential, hotel, multi-family)
• Examples at a similar scale and complexity to your project
• At least one before-and-after (raw CAD file vs. finished render)

If you’re rendering a hospitality property, it’s worth reviewing dedicated case studies such as hotel room and lobby 3D floor plan rendering projects, since hospitality renders require different lighting and furnishing logic than single-family homes.

3. What Is Your Turnaround Time – and Is It Guaranteed in Writing?

Turnaround time varies enormously depending on complexity, but a professional studio should give you a specific range (not “a few days”) and confirm it in the contract or quote. Ask directly:

• What’s the standard turnaround for a project of my size?
• Does turnaround change based on the number of revision rounds?
• What happens if the deadline is missed?

Studios that hedge on this question, or refuse to put timelines in writing, often struggle with capacity planning – which becomes your problem once you’re mid-project.

4. How Do You Handle Revisions?

Nearly every rendering project needs at least one revision round. Before hiring, clarify:

• How many revision rounds are included in the base price?
• What counts as a “minor” versus “major” revision?
• Is there an additional charge for revisions beyond the included rounds?

A transparent revision policy protects both sides. Vague answers here are one of the most common sources of project disputes and unexpected invoices.

5. What File Formats Can You Accept and Deliver?

Confirm the studio can work with your source files – whether that’s AutoCAD DWG, PDF floor plans, or a hand-drawn sketch – and that they can deliver output in the formats you actually need (high-res JPG, PNG with transparency, or editable source files). If you’re unsure how to prepare your source material, review guidance on how to prepare and submit CAD, PDF, or sketch files for 3D house floor plan rendering before you request quotes, since poorly prepared files are one of the biggest causes of project delays.

6. What Is Included in Your Pricing?

Rendering pricing structures vary widely – some studios charge per square foot, others per room or per deliverable. Ask explicitly:

• Does pricing scale with square footage, room count, or complexity?
• Are furniture styling, lighting passes, and color variations included, or billed separately?
• Is there a rush fee for expedited delivery?

For a deeper breakdown of how pricing models typically work, see this analysis of whether 3D floor plan rendering pricing scales with square footage, which explains common per-project versus per-square-foot pricing structures.

7. Do You Offer Additional Services Beyond Basic Rendering?

Studios that offer a broader service range – site plans, exterior renders, virtual staging, or hospitality-specific rendering – often indicate deeper technical maturity. This also matters practically: if your project scope expands later (say, from a single floor plan to a full marketing package), you’ll want a studio that can scale with you instead of forcing you to onboard a second vendor mid-project.

8. What Do Client Reviews and Testimonials Say?

Finally, verify reputation independently. Don’t rely solely on testimonials posted on the studio’s own website. Instead:

• Check third-party review platforms (Google Business Profile, Trustpilot, Clutch)
• Ask for two or three direct client references you can contact
• Search for the studio’s name alongside terms like “complaint” or “review” to surface unfiltered feedback

A studio confident in its work will rarely hesitate to connect you with a past client.

In-House vs. Outsourced vs. Freelance: Comparing Your Rendering Options

Before settling on a dedicated 3D floor plan rendering company, it helps to understand how that option compares to the alternatives.

For most real estate marketers, architects, and custom home builders, a specialized rendering company offers the best balance of cost, consistency, and accountability – particularly for projects tied to time-sensitive listings or investor presentations.

Common Mistakes to Avoid When Hiring a Rendering Company

Even experienced buyers fall into these traps:

Mistake 1: Choosing based on price alone.

The cheapest quote often excludes revisions, rush options, or high-resolution delivery – costs that surface later.

Mistake 2: Skipping the sample request.

A portfolio page isn’t the same as reviewing work relevant to your specific property type.

Mistake 3: Not confirming ownership rights.

Clarify upfront whether you own the final renders outright or are only licensed to use them.

Mistake 4: Ignoring communication style during the sales process.

If a studio is slow or vague before you’ve paid, expect the same – or worse – after.

Mistake 5: Failing to specify the intended use.

Renders for a permitting board, an MLS listing, and a luxury print brochure all require different resolution and styling; say so upfront.

Expert Tips for Evaluating Rendering Quality

When you receive sample renders or a proof draft, look beyond surface polish:

Tip 1: Check proportion accuracy.

Do door widths, ceiling heights, and furniture scale look believable against real-world dimensions?

Tip 2: Look at lighting realism.

Shadows should fall consistently from a single, logical light source; unnatural glow or flat lighting is a warning sign.

Tip 3: Inspect material texture at full resolution.

Zoom in – low-quality studios often cut corners on texture resolution, which becomes obvious once printed or displayed on a large screen.

Tip 4: Compare against the source file.

Overlay the render against the original CAD drawing to confirm the layout hasn’t drifted during modeling.

Understanding these fundamentals also makes it easier to brief the studio correctly from the outset – the same way that custom home builders use 3D floor plan rendering to win clients by providing clear, detailed references upfront rather than vague direction.

Step-by-Step: How to Vet a 3D Floor Plan Rendering Company

Follow this sequence before committing to a vendor:

1. Shortlist three to five studios based on portfolio relevance to your property type.
2. Request sample projects similar in scale and style to yours.
3. Ask the eight screening questions outlined above via email or a discovery call.
4. Request a written quote that specifies turnaround, revision rounds, and file formats.
5. Check references or third-party reviews independently.
6. Start with a smaller trial project if possible, before committing to a full package.
7. Confirm ownership and usage rights in writing before final payment.

This process typically takes just a few days but prevents the far costlier mistake of discovering mid-project that a studio can’t deliver what was promised.

How Rendering Quality Impacts Real Estate Marketing Outcomes

For agents and builders, rendering quality is not just an aesthetic choice – it directly affects listing performance. Buyers increasingly expect immersive visuals before they’ll schedule an in-person viewing, and listings that lack strong visual context often get scrolled past entirely. This shift is explored further in research on how 3D floor plan rendering transforms real estate listing performance, which breaks down why visual-first listings tend to convert better than text-heavy ones.

Industry data supports this trend as well. According to the National Association of Realtors, a growing share of home buyers begin their search online and rely heavily on visual content to shortlist properties before ever contacting an agent. Similarly, the American Institute of Architects notes that clear visual communication between architects and clients reduces costly design revisions later in a project.

What to Expect During the Rendering Process

Once you’ve selected a studio, a typical project follows this general workflow:

Timelines vary by project complexity, but a studio that can’t roughly map this process for you before you sign is unlikely to manage it well once you’re a paying client.

Frequently Asked Questions

How do I choose a 3D floor plan house rendering company?

Choose a 3D floor plan house rendering company by verifying their software pipeline, reviewing samples relevant to your property type, confirming turnaround time and revision policy in writing, and checking independent client reviews before signing a contract.

How much does 3D floor plan rendering typically cost?

Pricing varies by studio and project complexity, often scaling with square footage, room count, or level of detail requested. Get a written quote that specifies exactly what’s included before comparing prices across vendors.

How long does 3D floor plan rendering usually take?

Most residential projects take between one and two weeks from file submission to final delivery, depending on complexity and the number of revision rounds required.

What file formats do I need to provide for 3D floor plan rendering?

Most studios accept AutoCAD DWG files, PDF floor plans, or clear hand-drawn sketches with labeled dimensions. Higher-quality source files generally lead to faster turnaround and more accurate results.

Can a rendering company revise the floor plan after the first draft?

Yes – most professional studios include one or more revision rounds in their base pricing. Always confirm how many rounds are included and what additional revisions cost before starting the project.

Do I own the rights to the final rendered images?

This depends on the studio’s contract terms. Always confirm ownership and usage rights in writing before final payment, especially if you plan to use the renders across multiple marketing channels.

Conclusion

Knowing how to choose a 3D floor plan house rendering company protects your budget, your timeline, and ultimately the way your property or design gets presented to the people who matter most – buyers, investors, and clients. The eight questions above aren’t just a checklist; they’re a filter that separates studios capable of dependable, accurate work from those that only look good on a portfolio page. Take the time to vet properly, request relevant samples, and get every commitment in writing before you pay a deposit.

If you’re ready to move forward with a team that answers these questions with confidence, request a free rendering quote from Jytor and see how a dedicated studio can turn your floor plans into listing-ready visuals.

Request a Free 3D Floor Plan House Rendering Quote

This guide breaks down exactly what a rendering studio needs from you, how to prepare each file type correctly, and which mistakes cause the most rework. Whether you’re submitting a full CAD package or a rough napkin sketch, understanding 3D house floor plan rendering services from the file-prep stage onward will save you time, money, and revision cycles later in the project.

Why File Preparation Is the Foundation of Accurate 3D Floor Plan Rendering

Every 3D floor plan render starts as raw data. A rendering artist cannot guess wall thickness, ceiling height, or window placement – they need that information supplied clearly, or they must make assumptions that lead to costly revisions.

Consequently, the quality of your submitted files directly determines:

1. Turnaround time

Incomplete files trigger clarification emails and delay production.

2. Accuracy

Missing dimensions force artists to estimate scale, which can distort proportions.

3. Cost

Excessive back-and-forth or file cleanup work is often billed as additional revision time.

4. Client trust

A clean, well-labeled submission signals professionalism when the render is shared with buyers or investors.

If you’re new to the process, it helps to first understand what 3D floor plan rendering actually involves before diving into file specifications, since the rendering method chosen (2D top-down, 3D isometric, or fully furnished) affects which details matter most in your source file.

What File Formats Are Accepted for 3D Floor Plan Rendering?

Most studios, including ours, accept three primary categories of source material: CAD files, PDF plans, and hand-drawn or digital sketches. Each has different strengths, and understanding them helps you choose the right starting point.

Quick Answer: Best File Format for 3D Floor Plan Rendering

If you have access to it, a CAD file (DWG or DXF) is the best format for 3D floor plan rendering because it contains precise vector data, exact measurements, and layer information that speeds up modeling. PDFs are the second-best option when scaled correctly, and sketches work as a starting point but require additional clarification.

How to Prepare CAD Files for 3D Floor Plan Rendering

CAD files are the gold standard because they carry exact geometry. Even so, raw architectural CAD files often contain excess data that isn’t relevant to rendering, so a bit of cleanup goes a long way.

Step-by-Step: Preparing a CAD File

Step 1: Export in a universal format.

Save or export your file as DWG or DXF, both widely supported open exchange formats as outlined in Autodesk’s DXF reference documentation, rather than a proprietary format tied to one software license.

Step 2: Flatten unnecessary layers.

Remove dimension lines, construction notes, and title blocks that aren’t needed for the render, or place them on a separate layer the studio can toggle off.

Step 3: Confirm the scale.

State the drawing scale explicitly (for example, 1:100) in the file name or an accompanying note.

Step 4: Label rooms clearly.

Ensure room names (bedroom, kitchen, en-suite) are legible text elements, not just abbreviations only you understand.

Step 5: Include ceiling heights and structural notes.

If any rooms have vaulted ceilings, mezzanines, or split levels, flag them separately since these details are easy to miss in a flat 2D file.

Step 6: Bundle reference photos.

If the file represents an existing structure, attach a handful of site photos so the artist can match material tones and finishes.

Common CAD Submission Mistakes

• Sending a file locked to a CAD viewer that strips layer data on export.
• Omitting furniture layout when a furnished render is expected.
• Forgetting to note north orientation, which affects how natural lighting is rendered in exterior-adjacent views.

How to Prepare PDF Files for 3D Floor Plan Rendering

PDFs are the most common submission format because nearly every architect, builder, and MLS listing generates one. However, not all PDFs are created equal for rendering purposes.

Checklist for a Render-Ready PDF

• Vector-based, not a scanned image. A PDF exported directly from CAD or design software retains crisp lines; a scanned photocopy introduces blur and skew that make measurements unreliable.
• Include a scale bar or stated scale. Without this, the studio has to estimate proportions from door widths or standard fixture sizes, which is not fully reliable.
• High resolution if scanned. If a scan is unavoidable, submit at 300 DPI or higher so text labels remain legible after zooming.
• Single-page-per-floor. Multi-floor PDFs merged into one page can cause confusion about which walls belong to which level.
• Legible dimension strings. Faded or handwritten dimensions on an older PDF should be re-typed in a note if they’re difficult to read.

Why Scale Verification Matters Most for PDFs

Because a PDF is essentially a flattened image of the original drawing, any resizing during export, printing, or scanning can distort the true scale. Before submission, measure one known element (a standard door is usually 32-36 inches wide, a benchmark referenced in the International Code Council’s residential code) against the drawing to confirm the scale hasn’t drifted.

How to Prepare Sketch Files for 3D Floor Plan Rendering

Not every project starts with a formal plan. Real estate agents, small builders, and homeowners frequently begin with a hand sketch, and that’s perfectly workable as long as it’s structured correctly.

Making a Rough Sketch Render-Ready

1. Draw to approximate proportion. The sketch doesn’t need to be to scale, but rooms should be roughly proportional to each other so the overall layout reads correctly.
2. Write every measurement directly on the wall it belongs to. Don’t rely on memory or a separate note that could get separated from the drawing.
3. Label doors and swing direction. Indicate which way each door opens, since this affects furniture placement and walkway clearance in the final render.
4. Mark windows and their approximate width. Window placement significantly affects how a rendered room looks from the exterior.
5. Note the compass orientation. Even a simple north arrow helps position natural light correctly in exterior-facing renders.
6. Photograph the sketch in good lighting. If digitizing later, a flat, well-lit photo or scan avoids shadows that obscure handwriting.

Sketches typically require one short clarification call with the rendering team before production begins, so building in a little schedule buffer is wise.

Comparing CAD, PDF, and Sketch Submissions

Industry Applications Where File Prep Accuracy Matters Most

Different industries lean on 3D floor plan renders for different goals, and the file-prep stakes shift accordingly.

Architects rely on precise renders to communicate design intent to clients and contractors before construction begins, which is why architects use 3D floor plan rendering as a core part of the approval process, and clean CAD submissions directly shorten that review cycle.

Custom home builders often submit builder-standard plan sets across multiple lot variations, and consistent file naming and labeling helps custom home builders win clients faster by avoiding mix-ups between similar floor plans.

Real estate marketers typically work under tight listing deadlines, so a well-prepared PDF or CAD file can be the difference between a render delivered same-week versus one that slips past the listing launch, directly affecting how 3D floor plan rendering transforms real estate listing performance. This aligns with findings from the National Association of Realtors on listing visuals, which consistently show that stronger visual presentation correlates with faster buyer engagement.

Hospitality projects, such as boutique hotels, frequently need multiple room-type variations rendered from a single base plan, and clear labeling of which sketch or CAD file maps to which room type prevents costly mix-ups, a lesson explored further in our piece on hotel room and lobby 3D floor plan rendering.

If budget is a factor, it’s worth understanding whether 3D floor plan rendering pricing scales with square footage before finalizing which rooms or floors to submit first, since prioritizing key spaces can help manage cost on larger properties.

Common Mistakes to Avoid When Submitting Files

• Sending outdated plan revisions. Always confirm you’re submitting the final approved version, not an earlier draft.
• Omitting furniture or fixture placement when a furnished render is expected, leading to an empty-feeling result.
• Skipping ceiling height notes on split-level or vaulted spaces.
• Ignoring file naming conventions, which causes confusion when multiple floor plans are submitted together.
• Forgetting to specify render style preferences (2D top-down, 3D isometric, or photorealistic furnished) up front.
• Not flagging exterior wall materials when the floor plan connects to an exterior rendering package.

Expert Tips for a Smooth Rendering Handoff

• Bundle everything in one folder rather than sending files across multiple emails; missing attachments are one of the most common delay causes.
• Include a short brief describing the intended use (marketing brochure, investor presentation, construction reference) so the studio can tailor detail level accordingly.
• Request a draft review stage. Most studios build in one round of revisions – use it to confirm room labels and proportions before final rendering passes are applied.
• Standardize measurement units. Mixing metric and imperial units within one file set is a frequent source of scale errors.
• Keep a master file version so future renovations or additional room renders can reference the same base plan.

How Rendering Studios Actually Use Your Submitted Files

Understanding what happens to your file after you hit “send” makes it easier to see why certain details matter so much. Once a studio receives your CAD file, PDF, or sketch, an artist typically works through a predictable sequence:

1. Import and scale check. The file is brought into 3D modeling software, and the first task is confirming the scale matches real-world dimensions.
2. Wall and structure tracing. Using the source file as an underlay, the artist traces walls, doors, and windows to build the 3D geometry layer by layer.
3. Room labeling cross-check. Labels from your submission are matched against the traced geometry to confirm nothing was misread or skipped.
4. Detail pass. Ceiling heights, staircases, and any irregular architectural features (bay windows, vaulted ceilings, mezzanines) are added based on your notes.
5. Material and lighting setup. If a furnished or photorealistic render is requested, materials, furniture, and lighting are applied at this stage.
6. Draft review. A preliminary render is sent back to you for approval before final high-resolution output is generated.

Because this entire chain depends on the accuracy of step one, any ambiguity in your original file cascades through every later stage. A missing dimension caught at step two can usually be resolved with a quick email; the same issue caught at step five often means redoing several hours of work.

Choosing the Right Submission Method

Beyond the file itself, how you send it affects the process too. Most studios accept files through a few common channels, and each has trade-offs worth knowing before your first submission.

• Email attachments. Convenient for small file sets, but large CAD packages or high-resolution scans can exceed inbox size limits and get silently rejected by mail servers.
• Cloud storage links (Google Drive, Dropbox, WeTransfer). Better suited for larger file bundles, multi-floor projects, or when you’re sending supporting material like site photos alongside the plan.
• Client upload portals. Many rendering studios, including ours, offer a dedicated intake form where you can attach files directly along with project notes, reducing the risk of details getting lost in a long email thread.
• Project management tools (Trello, Asana, Basecamp). Useful for ongoing multi-property engagements where several floor plans move through the pipeline at once and version control matters.

Whichever method you choose, resist the temptation to split one project across multiple emails or links sent hours apart. Studios typically begin work as soon as a submission looks complete, so a follow-up file arriving after production has started often means avoidable rework.

Preparing Files for Multi-Story or Complex Homes

Single-story bungalows are the simplest case, but a large share of residential rendering projects involve multi-story homes, split levels, or additions with irregular layouts. A few extra preparation steps make a meaningful difference here.

• Submit each floor as a separate, clearly labeled file or page. Naming conventions like “Plan-Ground-Floor,” “Plan-First-Floor,” and “Plan-Roof” prevent levels from being confused during modeling.
• Indicate stair alignment across floors. Staircases need to line up structurally between levels, so a small note or dashed reference line showing where the stairwell falls on the floor above (or below) avoids awkward mismatches in the final 3D model.
• Flag double-height spaces. Great rooms, foyers, or lofts that span two floors should be marked explicitly, since a flat 2D plan alone won’t communicate that the ceiling above is open to the floor below.
• Note structural elements that carry through floors, such as load-bearing walls or chimneys, particularly if the render will later be used alongside construction documentation.

Special Considerations for Renovation and Remodel Projects

Renovation projects present a unique challenge: there is often no clean, up-to-date CAD file because the structure has changed since the original plans were drawn. In these cases, a slightly different preparation approach works best.

• Combine an old plan with updated field measurements. If an outdated CAD or PDF plan exists, use it as a base and clearly mark which walls, rooms, or additions have changed since it was drawn.
• Take dimensioned site photos. Photograph each room from at least two angles, and include a tape measure or reference object in at least one photo per room to help the artist judge scale.
• List “as-built” changes separately. A simple written list (for example, “kitchen wall moved 3 feet east,” “new bathroom added off the primary bedroom”) prevents the studio from rendering an outdated layout by mistake.
• Highlight finishes that must match reality. For renovation marketing renders, clients often care deeply about matching existing flooring, cabinetry, or trim, so reference photos of these finishes are especially valuable here.

What Happens If Your File Is Incomplete?

It’s worth knowing what actually happens on the studio side when a submission is missing information, since it demystifies why clarification requests happen and how to avoid them next time.

Typically, a project manager or lead artist reviews the incoming file before it’s assigned for modeling. If something critical is missing – an unlabeled room, an ambiguous scale, or a dimension that doesn’t match the rest of the plan – the studio will usually pause and send a short list of clarifying questions rather than guess. This is a good thing: guessing at this stage is exactly what produces renders that don’t match reality. However, every round of back-and-forth adds time to the schedule, so a thorough first submission is the single biggest lever you have over how quickly your render comes back.

Frequently Asked Questions

What is the best file format for 3D house floor plan rendering?

CAD files (DWG or DXF) are generally the best format for 3D house floor plan rendering because they retain exact scale and layer data, reducing the risk of proportion errors during modeling.

Can I submit a hand-drawn sketch for 3D floor plan rendering?

Yes, a hand-drawn sketch can be used for 3D floor plan rendering as long as measurements are clearly written on each wall and door swings and window placements are marked, though a clarification call is usually needed before production.

How do I know if my PDF floor plan is scaled correctly?

Measure a known reference element, such as a standard door (32-36 inches wide), against the PDF drawing; if the proportions match, the scale is likely accurate, and if not, the file should be re-scaled before submission.

What information should I include besides the floor plan file?

Along with the floor plan file, include room labels, ceiling height notes for irregular spaces, compass orientation, furniture placement (if a furnished render is wanted), and any reference photos for material or finish matching.

How long does it take to prepare files before rendering can start?

File preparation time varies: a clean CAD file may need no prep at all, a PDF might need 15-30 minutes of scale verification, and a sketch often requires a short clarification call, typically adding a day or two to the overall project timeline.

Quick Reference Checklist Before You Submit

Use this checklist as a final pass before sending your files to a rendering studio:

• File exported in a universal format (DWG, DXF, or vector PDF)
• Scale clearly stated or verifiable against a known reference (like a standard door width)
• Every room labeled legibly
• Ceiling heights and irregular features (vaulted ceilings, lofts, mezzanines) flagged
• Compass orientation marked
• Door swing directions and window placements indicated
• Multi-floor plans clearly named and separated
• Reference photos attached for material or finish matching, if relevant
• Furniture layout included, if a furnished render is expected
• Render style preference specified (2D top-down, 3D isometric, or photorealistic)
• All files bundled in a single email, folder, or upload link

Running through this list takes only a few minutes but consistently prevents the majority of clarification requests that slow projects down. Teams that adopt this habit across multiple projects – such as builders managing several lot variations or agents handling a steady stream of listings – tend to see noticeably shorter turnaround times over their first three or four submissions, simply because the studio spends less time asking questions and more time modeling.

Conclusion

Getting your CAD, PDF, or sketch files render-ready isn’t complicated, but it does require attention to scale, labeling, and completeness before you hit send. A well-prepared file set shortens turnaround time, reduces revision rounds, and gives you a floor plan render that accurately reflects the space you’re marketing or building. and our team will guide you through the exact specs needed for your project type.

Request a free 3D Floor Plan Rendering Quote Today →

Hotel development moves fast, and the margin for error is thin. A single miscalculated hallway width or an awkwardly placed reception desk can quietly cost a property months of guest complaints and renovation budget. That is exactly why more hospitality groups are turning to 3D floor plan rendering services to catch these issues on screen instead of on site.

This guide breaks down how hotel room and lobby 3D floor plan rendering actually works, where it delivers the most value, and how to avoid the mistakes that slow down hospitality projects.

What is 3D Floor Plan Rendering for Hotels?

3D floor plan rendering for hotels is the process of transforming 2D architectural drawings into detailed, dimensional visuals that show furniture placement, spatial flow, material finishes, and lighting within guest rooms, suites, and public areas.

Unlike a standard blueprint, a rendered floor plan communicates scale and mood at a glance. Stakeholders no longer need to interpret abstract line drawings; instead, they see a near-accurate preview of how a space will actually feel to a guest walking through it.

Quick definition: A 3D floor plan rendering is a top-down or angled visual representation of a physical layout, enhanced with realistic textures, furnishings, and lighting to simulate the finished environment.

This approach typically serves three groups simultaneously:

• Developers and investors reviewing feasibility and finish quality
• Interior designers coordinating furniture, fixtures, and equipment (FF&E)
• Marketing teams building pre-launch materials for bookings and franchise decks

Why Hospitality Brands Are Prioritizing 3D Rendering Over Traditional Blueprints

Traditional 2D blueprints still matter for construction documentation, but they rarely help non-technical stakeholders make confident decisions. Consequently, hotel groups increasingly pair blueprints with rendered visuals during the planning phase.

Here’s why the shift is happening:

Faster stakeholder approval.

Investors and ownership groups approve layouts more quickly when they can see realistic previews rather than schematic lines.

Reduced construction rework.

Spatial conflicts, such as a bathroom door swinging into a closet, surface earlier, before contractors mobilize.

Stronger brand consistency.

Chains with multiple properties use rendered plans to standardize room layouts across locations.

Marketing-ready assets.

Pre-construction renders double as promotional content for OTAs, franchise pitches, and pre-sale campaigns.

Because hospitality projects often involve multiple decision-makers across ownership, operations, and design, a shared visual reference reduces miscommunication at every stage.

Guest Room Rendering: What It Covers and Why It Matters

Guest rooms are the core revenue-generating asset of any hotel, so their layout deserves the most scrutiny.

A 3D floor plan rendering for hotel rooms typically maps out:

• Bed placement and headboard wall orientation
• Bathroom footprint and door clearances
• Closet, luggage rack, and workstation zones
• Window placement relative to furniture layout
• ADA-compliant accessible room configurations

Standard Room vs. Suite Layouts

Standard rooms prioritize efficient circulation within a compact footprint, while suites require rendering for zoning between sleeping, living, and sometimes kitchenette areas. Designers frequently test multiple bed configurations, such as king versus double-queen, within the same shell to determine which layout maximizes both comfort and yield per square foot.

Suite rendering adds another layer of complexity because it usually involves distinct functional zones within one contiguous footprint. A living area, a sleeping area, and occasionally a small dining or work nook all need to coexist without feeling cramped. Rendering makes it possible to test partition placement, furniture scale, and sightlines between zones before committing to a final layout. In many cases, a suite that reads comfortably on a flat blueprint feels noticeably tighter once furniture and circulation paths are added in 3D, which is precisely the kind of issue rendering catches early.

Accessible and ADA-Compliant Room Rendering

Accessible guest rooms carry their own set of dimensional requirements, including wider door clearances, turning radii near the bed and bathroom, and roll-in shower configurations. Rendering these layouts alongside standard rooms allows design teams to confirm compliance visually rather than relying solely on measured drawings. This is particularly useful when a property includes multiple accessible room types, since roll-in shower and transfer-type shower configurations each carry distinct clearance needs that are easier to verify in a dimensional model.

Material and Finish Visualization in Guest Rooms

Beyond layout, rendering also plays a significant role in finish selection. Flooring materials, headboard upholstery, drapery, and accent wall treatments can all be swapped within the same base model, allowing design teams to compare finish packages side by side without building physical mockup rooms. For multi-property brands, this is especially valuable when testing a refreshed finish package before rolling it out across an entire portfolio, since it is far less expensive to adjust a rendered material than to redo a built sample room.

Lobby and Public Area Rendering: Planning for Guest Flow

Lobbies do more than welcome guests; they set brand tone and manage circulation between the entrance, front desk, elevators, and amenity spaces. Because lobbies handle far more foot traffic than a guest room, rendering here focuses heavily on flow and sightlines.

A well-rendered lobby floor plan typically addresses:

• Distance and sightline between entrance and front desk
• Queue management space near check-in
• Seating clusters that don’t obstruct walking paths
• Sightlines to elevators, restaurants, or bars
• Placement of luggage storage and concierge desks

Furthermore, rendering helps designers test how natural light interacts with lobby materials at different times of day, which is difficult to judge from a flat plan alone.

Rendering the Lobby-to-F&B Transition

Many hotel lobbies now open directly into a restaurant, bar, or lounge, which means the boundary between these spaces needs careful visual planning. Rendering allows designers to test how much visual separation is needed between a bustling lobby and a quieter dining space, and where a partial screen, planter wall, or level change might help without fully closing off the connection. Getting this transition wrong is a common source of guest complaints, since an overly open layout can make dining feel exposed, while an overly closed one can make the lobby feel disconnected from the property’s energy.

Rendering for Peak-Hour Circulation

Lobbies rarely operate at a steady pace throughout the day. Check-in and check-out periods create short bursts of high foot traffic, and rendering helps designers stress-test whether a layout can absorb that surge without bottlenecking near the front desk. This is particularly relevant for properties with high group or conference volume, where thirty or more guests may attempt to check in within a short window. A lobby that looks spacious in a static rendering can still feel cramped during these peak periods if queue depth and staff workflow were not modeled with real traffic patterns in mind.

Common Lobby Zones Mapped in Rendering

Step-by-Step: How a Hotel 3D Floor Plan Rendering Project Works

Most hospitality rendering projects follow a fairly consistent workflow, regardless of property size.

7 Main Steps

Step 1: Drawing collection.

The rendering team gathers architectural CAD files, PDFs, or hand-sketched layouts for each room type and public area.

Step 2: Space planning review.

Dimensions, door swings, and fixed elements like plumbing stacks are verified against code requirements.

Step 3: Base model construction.

Walls, floors, and ceiling heights are built into a 3D model matching the verified plan.

Step 4: Furniture and fixture placement.

FF&E is placed according to brand standards or custom design direction.

Step 5: Material and lighting application.

Flooring, wall finishes, and lighting fixtures are applied to simulate realistic ambiance.

Step 6: Stakeholder review and revisions.

Draft renders are circulated for feedback from ownership, design, and operations teams.

Step 7: Final delivery.

High-resolution renders are exported for construction reference, franchise decks, or marketing use.

Typically, this cycle takes one to three weeks per room type or zone, depending on revision rounds and how early the drawings are locked.

Common Mistakes Hospitality Teams Make With Floor Plan Rendering

Even experienced developers run into avoidable issues when commissioning rendered floor plans. Watch for these recurring problems:

Mistake 1: Skipping accessible room variants.

ADA-compliant layouts are often rendered last-minute, leading to compliance surprises during construction review.

Mistake 2: Ignoring MEP constraints.

Mechanical, electrical, and plumbing locations are sometimes overlooked, which can force furniture layouts that clash with fixed infrastructure.

Mistake 3: Over-customizing early.

Teams occasionally invest in highly detailed renders before the layout is locked, resulting in wasted rework when dimensions shift.

Mistake 4: Underestimating lobby scale.

Public areas are sometimes rendered at a scale that looks appealing but doesn’t reflect real queue or circulation needs during peak check-in hours.

Mistake 5: Delaying stakeholder input.

Waiting until final renders to gather feedback from operations teams often surfaces avoidable issues too late in the process.

Mistake 6: Treating every room type identically.

Applying the same furniture package across corner rooms, accessible rooms, and standard rooms without adjusting for footprint differences frequently produces layouts that look correct on paper but feel cramped once built.

Mistake 7: Overlooking housekeeping workflow.

Cart storage, linen closet access, and service corridor width are sometimes left out of early renders, only to become a logistical headache once daily operations begin.

Avoiding these pitfalls generally comes down to one habit: reviewing renders in stages rather than waiting for a single final reveal. Involving housekeeping and front office staff during draft review, rather than only at project completion, also tends to surface practical issues that design teams alone might miss.

Expert Tips for Getting the Most Out of Hotel Rendering Projects

Based on how experienced hospitality design teams approach this work, a few practices consistently improve outcomes:

Tip 1: Lock dimensions before adding detail.

Confirm room footprints and fixed infrastructure before investing in high-detail furniture and material rendering.

Tip 2: Render at least two furniture configurations per room type.

This helps compare layout efficiency against guest comfort.

Tip 3: Involve operations early.

Front office and housekeeping staff often catch practical flow issues designers may miss.

Tip 4: Match lighting renders to actual fixture specs.

Using accurate lumens and color temperature avoids surprises once installed.

Tip 5: Batch similar room types together.

Rendering standard rooms as a set, rather than individually, keeps consistency across the property.

These habits are especially valuable for multi-property brands aiming to standardize layouts across a portfolio, since consistency reduces both design costs and guest experience variability.

Lighting Design Considerations in Hotel Rendering

Lighting shapes how a guest experiences a space more than almost any other design element, which is why hospitality rendering places significant emphasis on simulating accurate light behavior rather than treating it as a cosmetic afterthought.

Guest Room Lighting in Rendering

Guest room renders typically model three distinct lighting layers: ambient overhead lighting, task lighting near the desk or bedside, and accent lighting along headboard walls or under furniture. Rendering these layers separately allows designers to confirm that reading light near the bed is sufficient without creating glare, and that accent lighting enhances the room’s mood without competing with task areas. Color temperature also plays a meaningful role here, since warmer tones near two thousand seven hundred kelvin generally read as more relaxing in guest rooms, while cooler tones can feel clinical if applied without care.

Lobby Lighting in Rendering

Lobbies present a more complex lighting challenge because they typically combine natural daylight, decorative fixtures, and functional lighting near the reception desk. Rendering helps designers test how these sources interact across different times of day, which matters significantly for lobbies with large windows or skylights. A layout that looks balanced under midday rendering conditions can sometimes appear underlit during evening hours if artificial lighting was not modeled to compensate for the loss of natural light. Testing both daytime and evening lighting scenarios during the rendering phase helps avoid this gap before installation.

Why Lighting Accuracy Matters for Approval

Stakeholders reviewing rendered floor plans often form their overall impression of a space based heavily on lighting quality, even when their feedback is framed around layout or furniture. A dimly rendered image can make an otherwise well-planned layout seem uninviting, while an overly bright render can mask genuine spatial issues. Because of this, experienced rendering teams calibrate lighting carefully to reflect realistic installed conditions rather than exaggerating brightness purely for visual appeal.

Comparison: 2D Blueprint vs. 3D Floor Plan Rendering for Hotels

As the table shows, blueprints remain essential for construction documentation, but rendering fills the communication gap that blueprints alone cannot solve.

The Return on Investment of Rendering Before Construction

Hospitality developers often ask whether the cost of rendering is justified against an already tight pre-construction budget. In most cases, the answer becomes clear once a single costly change order is compared against the price of a render.

Consider a scenario where a bathroom door swing conflicts with a closet layout across fifty identical guest rooms. Caught during rendering review, this is a quick adjustment to the 3D model. Caught after framing is complete, it becomes a construction change order multiplied across every affected room. The same logic applies to lobby furniture that turns out to be too large for the space once staff and guests are actually moving through it; rendering surfaces that mismatch long before furniture is ordered.

Beyond avoided rework, rendering also compresses decision-making time. Ownership groups, franchise partners, and design committees often need multiple rounds of approval before construction can proceed, and a clear visual reference tends to shorten each round considerably compared to reviewing dimensioned line drawings alone.

How Rendering Supports Multi-Property Hotel Brands

Chains managing several properties benefit from rendering in a slightly different way than single-property developers. Because brand standards need to translate consistently across different building shells, rendering helps confirm that a standard room layout still functions within varying square footage across locations.

For related planning workflows outside hospitality, our article on how architects use 3D floor plan rendering to communicate design intent breaks down similar principles applied to residential and commercial architecture.

Additionally, franchise development teams often use these renders during site approval meetings, since how custom home builders use 3D floor plan rendering to win clients shows a comparable client-approval dynamic, even though the audience differs.

Pricing Considerations for Hotel Floor Plan Rendering

Pricing for hospitality rendering projects generally scales with the number of unique room types, the complexity of public areas, and the level of material detail requested. Standard guest rooms typically cost less per render than lobbies or restaurant spaces, since public areas involve more furniture variety and lighting complexity.

For a deeper breakdown of how project scope affects cost, see does 3D floor plan rendering pricing scale with square footage, which applies directly to hospitality projects with multiple room types.

Using Rendered Floor Plans for Pre-Launch Marketing

Once floor plans are finalized, many hospitality brands repurpose the same rendered assets for pre-launch marketing, including OTA listings, franchise recruitment decks, and investor updates. This dual-use approach maximizes the value of the rendering investment, since the same visuals that guided construction decisions can also drive early bookings.

This mirrors a broader trend across the real estate sector, where how 3D floor plan rendering transforms real estate listing performance shows measurable engagement gains from rendered visuals compared to flat listing photos.

According to guidance from the American Institute of Architects, clear visual communication between design teams and stakeholders reduces costly misinterpretation during the pre-construction phase, a principle that applies directly to hospitality rendering workflows.

Similarly, the U.S. Access Board publishes detailed accessibility guidelines that hospitality designers reference when rendering ADA-compliant room configurations, ensuring compliance is visualized correctly from the earliest planning stages.

The Technology Behind Modern Hotel Rendering

Most hospitality rendering studios today build on a combination of CAD-based modeling software and dedicated rendering engines that simulate realistic lighting, reflections, and material behavior. While the underlying software varies by studio, the workflow generally follows a consistent logic: a precise 3D model is built first, and photorealistic rendering is applied on top of that accurate geometry.

This distinction matters for hospitality clients because the quality of a rendered image is only as good as the model beneath it. A visually polished render built on inaccurate dimensions can mislead stakeholders into approving a layout that will not actually fit once construction begins. For this reason, experienced rendering partners verify dimensions against architectural drawings before investing time in high-detail visual output, rather than prioritizing visual polish over spatial accuracy.

Real-time rendering technology has also become more common in hospitality projects, allowing stakeholders to walk through a virtual room or lobby interactively rather than reviewing static images alone. While static renders remain the standard deliverable for most projects, interactive walkthroughs are increasingly requested for flagship properties or complex lobby redesigns where spatial flow is difficult to judge from still images.

How to Choose a 3D Rendering Partner for Hospitality Projects

Not every rendering studio has direct experience with hospitality-specific requirements, such as ADA room configurations, brand standard furniture packages, or the peak-traffic circulation patterns unique to hotel lobbies. When evaluating a potential rendering partner, hospitality teams generally benefit from asking a few targeted questions:

• Does the studio have prior hospitality project experience, or is their portfolio primarily residential and commercial?
• How do they handle revision rounds? Multi-stakeholder hospitality projects typically require more revision cycles than single-owner residential projects.
• Can they batch-render similar room types efficiently, which matters significantly for properties with dozens or hundreds of identical rooms?
• Do they verify dimensions against architectural drawings before beginning detailed rendering work, rather than working from assumptions?
• What is their typical turnaround time per room type or lobby zone, and does that align with the project’s construction timeline?

Working with a rendering partner who understands these hospitality-specific nuances generally results in fewer revision cycles and a smoother handoff between design approval and construction documentation.

What is 3D Floor Plan Rendering for Hotel Basics

For readers new to this topic, here is a quick summary in plain terms:

• 3D floor plan rendering converts flat drawings into realistic, dimensional visuals of guest rooms and public spaces.
• It helps hospitality teams catch layout problems before construction begins.
• It supports faster decisions from investors, franchise partners, and design teams.
• It doubles as marketing content once finalized.

Frequently Asked Questions

What is 3D floor plan rendering for hotels used for?

It’s used to visualize guest room layouts, lobby traffic flow, and public area design before construction, helping stakeholders approve designs faster and with fewer revisions.

How long does hotel floor plan rendering typically take?

Most projects take one to three weeks per room type or zone, depending on how quickly drawings are finalized and how many revision rounds are needed.

Does 3D rendering replace architectural blueprints?

No. Blueprints remain necessary for construction documentation, while rendering adds a visual layer that helps non-technical stakeholders understand the finished space.

Can rendered floor plans be used for hotel marketing?

Yes. Many brands repurpose finalized renders for OTA listings, franchise decks, and pre-launch marketing campaigns.

How much does 3D floor plan rendering for hotels cost?

Pricing varies based on the number of unique room types, public area complexity, and level of material detail, with public spaces typically costing more than standard guest rooms.

Can rendering help with ADA-compliant room planning?

Yes. Rendering allows design teams to visually confirm door clearances, turning radii, and roll-in shower configurations for accessible rooms before construction begins.

Is 3D floor plan rendering only useful for new hotel construction?

No. Renovation projects also benefit, particularly when testing new finish packages, furniture layouts, or lobby reconfigurations before committing to a full property refresh.

Conclusion

3D floor plan rendering for hotels bridges the gap between architectural drawings and real-world guest experience, giving hospitality teams a clear, shared reference point from the earliest planning stages through opening day. Whether the goal is refining guest room efficiency or mapping lobby traffic flow, rendering reduces costly guesswork and speeds up stakeholder alignment.

If your hospitality project needs accurate, presentation-ready floor plans, and see how quickly your team can move from concept to confident sign-off

Get a 3D Hotel Floor Plan Rendering Quote →

Architecture is, at its heart, a translation problem. An architect sees three-dimensional space in a two-dimensional line drawing; almost nobody else does. Clients nod politely at a floor plan meeting, then approve a layout they don’t fully understand, only to be surprised on-site months later when the “cozy” living room feels cramped or the “open” kitchen doesn’t connect the way they imagined. This is where Floor Plan 3D Rendering Services close the gap between architectural intent and client comprehension, turning abstract technical documents into a shared visual language that both parties can discuss, question, and refine before a single wall goes up.

This article walks through why floor plan rendering has become essential to modern practice, how architects actually use it at each project stage, the mistakes that undercut its value, and the practical steps for getting the most out of a rendering partner.

Why Traditional Floor Plans Fail to Communicate Design Intent

A construction-grade floor plan is built for contractors, engineers, and code officials – not for the client writing the cheque. It’s dense with symbols, layered with dimension lines, and stripped of anything that isn’t strictly necessary for building the structure correctly.

That precision is exactly what makes it hard for a layperson to read. Studies on spatial cognition consistently show that most people struggle to mentally convert flat, scaled drawings into a sense of real-world volume, furniture placement, and daylight. Consequently, clients often approve plans based on trust rather than genuine understanding.

Common gaps that plain 2D plans leave open include:

• Scale misjudgment – a 12-by-14-foot bedroom looks identical to a 10-by-12-foot one at a quick glance.
• No sense of light or material – a plan can’t show how afternoon sun hits an open-plan kitchen.
• Furniture ambiguity – clients don’t automatically know if their existing sofa will fit.
• Flow confusion – circulation paths and sightlines are easy to misread on paper.

3D floor plan rendering for architects solves these gaps directly, because it presents the same design information in a format the human brain is naturally wired to interpret.

What is 3D Floor Plan Rendering, Exactly?

In simple terms, 3D floor plan rendering is a technique that converts a scaled architectural drawing into a dimensional, textured, and lit digital model, viewed either as a top-down “dollhouse” perspective or as an eye-level walkthrough render. It preserves every measurement from the original CAD or BIM file while adding the visual cues – furniture, flooring, wall color, natural light – that make a space legible to a non-technical audience.

There are generally three formats architects request:

Top-down 3D floor plan renderings

An angled bird’s-eye view showing the whole layout with furnished rooms and removed ceiling.

Interactive 3D floor plan renderings

Web-based models clients can rotate, zoom, and sometimes furnish themselves.

Photorealistic interior renderings

Eye-level, cinematic images of individual rooms, typically generated from the same 3D floor plan for consistency.

Each format plays a slightly different communication role, which is exactly why most firms use them together rather than choosing just one.

How Architects Use 3D Floor Plan Rendering at Every Project Stage

1. Early Concept and Client Buy-In

At the schematic design stage, nothing is finalized yet, so architects use quick, lower-detail 3D floor plans to test whether a client responds to a proposed layout before investing in construction documents. This is often the single highest-leverage use of rendering, because catching a misalignment here costs a revision; catching it after permits are filed costs a redesign.

2. Design Development and Option Comparisons

Once a direction is chosen, architects frequently render two or three layout variations side by side – open-concept versus segmented kitchen, for example – so clients can make an informed decision rather than guessing from plan symbols alone. According to the American Institute of Architects, clear visual communication during design development directly reduces costly change orders later in construction.

3. Client Presentations and Stakeholder Approval

For multi-stakeholder projects – a family, a board, an investor group – rendered floor plans give everyone a common reference point. Nobody has to admit they can’t read a blueprint; the rendering does the explaining for them.

4. Marketing and Pre-Sale (Residential and Commercial)

Developers and custom home builders lean heavily on renderings for pre-construction sales. Firms working on this side of the business often reference resources like how custom home builders use 3D floor plan rendering to win clients, since the same visuals that win internal approval also convert prospective buyers.

5. Contractor and Vendor Coordination

Interestingly, contractors also benefit from rendered plans, even though they’re trained to read technical drawings. A rendered plan reduces on-site miscommunication about finishes, fixture placement, and furniture clearances, catching conflicts before they become expensive field changes.

Key Benefits of 3D Floor Plan Rendering for Architects

Below is a quick-reference table summarizing the core advantages architects report when adopting rendered floor plans into their workflow.

Quick Answer Summary

In short: 3D floor plan rendering for architects speeds up approvals, prevents expensive mid-construction revisions, and gives every stakeholder – from homeowner to contractor – the same accurate picture of the finished space.

Step-by-Step: How the Rendering Process Actually Works

1. Share the base drawing. Architects send CAD, Revit, or SketchUp files along with any material or furniture preferences.
2. Blockout and calibration. The rendering team rebuilds walls, openings, and dimensions to match the original plan exactly.
3. Furniture and material staging. Flooring, cabinetry, fixtures, and furniture are placed according to the design intent.

4. Lighting setup. Natural and artificial light sources are calibrated to reflect the building’s real orientation.

5. Rendering and post-production. The scene is rendered, then color-corrected and refined for presentation quality.

6. Revisions. Architects review and request adjustments – a faster process now than starting a rendering from scratch.

This workflow generally overlaps with what’s already outlined in what is 3D floor plan rendering, which covers the technical side of the process in more depth for teams that are new to outsourcing this work.

Common Mistakes Architects Make With Floor Plan Rendering

Even experienced firms run into avoidable issues when they first integrate rendering into client workflows.

Mistake #1 Sending incomplete drawing sets.

Missing elevations or unclear ceiling heights lead to rendering guesswork.

Mistake #2 Skipping the furniture brief.

Generic furniture placement can misrepresent actual room usability.

Mistake #3 Treating renders as final art too early.

Using late-stage detail in an early concept meeting sets unrealistic client expectations about how “finished” the design already is.

Mistake #4 Ignoring lighting orientation.

A render that ignores true north can mislead clients about how bright or dark a room will actually feel.

Mistake #5 Over-rendering every room.

Not every space needs a photorealistic render; a clean 3D floor plan is often enough for utility rooms, closets, or garages.

Expert Tips for Getting the Most Out of 3D Floor Plan Rendering

Match rendering fidelity to the meeting’s purpose. How Architects Use 3D Floor Plan Rendering to Communicate

Concept meetings need clarity, not cinematic polish; final client walkthroughs justify the extra detail.

Standardize your furniture and material libraries across projects so renders stay consistent with your firm’s presentation style.

Request annotated renders for technical reviews, so dimensions remain visible alongside the visual.

Batch similar rooms together when working with a rendering partner – it typically keeps turnaround times shorter and costs more predictable, a factor covered in does 3D floor plan rendering pricing scale with square footage.

Pair floor plan renders with exterior visuals when marketing a project, since buyers rarely commit based on interior layout alone.

3D Floor Plan Rendering vs Traditional Presentation Methods

Firms already working in Building Information Modeling don’t need to duplicate effort to get rendering value. Because BIM platforms like Revit and ArchiCAD store spatial data natively, a rendering studio can pull directly from that model rather than rebuilding geometry from scratch, which shortens turnaround and reduces the chance of dimensional mismatch.

The National Institute of Building Sciences notes that BIM-integrated visualization workflows continue to gain adoption because they reduce redundant modeling work across the design-to-construction pipeline.

For firms without a full BIM setup, CAD-based renders remain equally viable – the deciding factor is usually turnaround needs and budget, not software.

Choosing the Right 3D Floor Plan Rendering Partner

Not every rendering studio operates the same way, and the fit matters more than the price tag. When evaluating a partner, architects should look at:

• Portfolio relevance – residential, commercial, and hospitality renders each demand different lighting and material handling.
• Turnaround consistency – a fast one-off render means little if delivery times swing wildly on the next project.
• Revision policy – clarify how many rounds of changes are included before extra charges apply.
• File compatibility – confirm the studio can work directly from your CAD, Revit, or SketchUp files without slow manual re-drafting.
• Communication style – especially important for firms managing multiple concurrent projects with tight client deadlines.

Architecture studios that outsource this work consistently rather than project-by-project tend to see the biggest gains, since a rendering partner familiar with a firm’s presentation standards works faster over time.

Frequently Asked Questions

What is 3D floor plan rendering for architects used for?

It’s used to translate technical, scaled drawings into visual, easy-to-understand images so clients, investors, and contractors can accurately picture a finished space before construction begins.

How long does it take to get a 3D floor plan rendering done?

Most rendering studios deliver a standard floor plan render within two to five business days, depending on complexity, furniture detail, and the number of revision rounds requested.

Is 3D floor plan rendering only useful for residential projects?

No. Commercial offices, retail spaces, hospitality projects, and mixed-use developments all benefit from rendered floor plans, particularly during stakeholder approval and leasing or pre-sale marketing.

Do architects need BIM software to use 3D floor plan rendering?

Not necessarily. While BIM files like Revit models streamline the process, rendering studios can also work from standard CAD drawings or even scaled PDF plans.

How much does 3D floor plan rendering typically cost?

Pricing usually depends on square footage, level of furnishing detail, and number of views required – a topic covered in more depth in the firm’s dedicated pricing breakdown article.

Final Thoughts

3D floor plan rendering for architects isn’t about making presentations look impressive – it’s about removing the guesswork from client conversations that used to rely on trust rather than true understanding. Firms that build rendering into their standard workflow tend to see fewer stalled approvals, fewer costly mid-construction changes, and a smoother path from concept to completed build. If your team is ready to turn your next set of floor plans into visuals clients actually understand, about a project quote.

Talk to 3D Floor Plan Rendering Team →

Every custom home builder knows the pre-design meeting is where trust is either earned or lost. Consequently, the tools you bring into that first conversation matter as much as your portfolio. For builders offering 3D floor plan rendering services, a rendered floor plan does the heavy lifting that words and flat blueprints simply cannot.

This article breaks down exactly how top custom home builders are using 3D floor plan rendering to shorten sales cycles, reduce costly change orders, and win more signed contracts – along with practical steps, common mistakes to avoid, and expert tips you can apply immediately.

Whether you are a small independent builder handling a handful of custom projects a year, or a larger firm running multiple pre-design meetings weekly, the principles below apply directly to your sales process. Rendering is no longer reserved for luxury estate builders; it has become an accessible, cost-effective tool for firms of every size, and clients increasingly expect to see it during their very first serious conversation with a builder.

What is 3D Floor Plan Rendering, and Why Does It Matter for Custom Builders?

3D floor plan rendering is the process of converting a two-dimensional architectural layout into a three-dimensional, often photorealistic, visual representation. Instead of squinting at wall lines and dimension callouts, clients see furnished rooms, realistic lighting, textured flooring, and accurate spatial proportions.

For custom home builders specifically, this matters because:

• Clients are rarely trained to read architectural drawings, so misinterpretation is common.
• Pre-design meetings are decision-making moments where emotional buy-in drives contract signing.
• Change orders during construction are far more expensive than design revisions on a rendered plan.

In short, a rendered floor plan bridges the gap between a builder’s technical vocabulary and a client’s visual imagination. Meanwhile, it also positions the builder as a modern, detail-oriented professional rather than someone relying on outdated presentation methods.

This shift also reflects a broader change in how homeowners research and compare builders before ever setting foot in a meeting. Many prospective clients now review portfolios, social media pages, and past project galleries online well before reaching out, which means their expectations for visual quality are already set before the pre-design meeting even begins. Builders who fail to meet that expectation with rendered visuals risk appearing less capable than competitors, regardless of the actual quality of their construction work.

The Core Difference Between 2D Blueprints and 3D Rendered Floor Plans

As the table shows, the difference is not cosmetic. It directly affects how quickly a prospect moves from “interested” to “signed.”

Why Pre-Design Meetings Are the Highest-Leverage Moment for Rendering

The pre-design meeting is typically the first serious conversation after initial interest. At this stage, the client is comparing builders, evaluating trust, and forming a mental picture of their future home. Builders who show up with only a flat blueprint are asking clients to do the imaginative work themselves.

By contrast, builders using 3d floor plan rendering for custom home builders as a standard practice let the visual do that imaginative work instantly. This has three measurable effects:

1. Faster decision-making – Clients spend less time deliberating because ambiguity is removed.
2. Higher perceived professionalism – A polished render signals investment in the client relationship.
3. Fewer mid-project disputes – Expectations are set visually before contracts are signed.

Furthermore, rendered floor plans give builders a natural opening to walk clients through layout logic, room adjacencies, and traffic flow, turning a passive presentation into an interactive consultation.

Step-by-Step: How Builders Integrate Rendering Into the Sales Process

Custom home builders who consistently win clients follow a repeatable workflow rather than treating rendering as an afterthought. Below is the typical sequence used by high-performing teams.

1. Collect the base architectural drawing – This can be a hand sketch, CAD file, or an early-stage layout from the architect.
2. Convert the layout into a to-scale 3D floor plan – Walls, doors, and windows are modeled to accurate dimensions.
3. Apply realistic materials and finishes – Flooring, cabinetry, and countertop options are matched to the client’s style preferences.
4. Add furniture and lighting for context – This helps clients visualize scale and daily use of each room.
5. Prepare both top-down and angled 3D views – Top-down views clarify layout logic; angled views build emotional connection.
6. Present the render live during the pre-design meeting – Builders walk clients through the space room by room, answering questions in real time.
7. Capture feedback and revise before finalizing the design contract – Adjustments happen digitally, not during framing.

Notably, this workflow rarely takes more than a few business days when handled by an experienced rendering partner, which means it fits comfortably inside a typical sales cycle without causing delays.

Practical Insights: What Actually Moves the Needle With Clients

Not every rendering technique carries equal weight in a sales meeting. Based on patterns observed across residential construction firms, a few specific practices consistently produce stronger client reactions.

• Show the kitchen and primary suite first. These two rooms drive the majority of emotional decision-making for most homeowners.
• Include a furnished top-down view alongside a walkthrough angle. Clients process spatial logic and lifestyle appeal differently, so both perspectives matter.
• Match exterior lighting to the client’s actual build location. Regional lighting conditions affect how a home is perceived, especially for homes with large window packages.
• Present at least one comparison view. For example, showing an open-concept layout beside a traditional segmented layout helps clients articulate their own preferences.
• Keep renders consistent with what construction can realistically deliver. Overpromising visually leads to disappointment later, which damages trust and referrals.

Additionally, builders who annotate renders with brief callouts, such as ceiling height or window specifications, tend to answer client questions before they are even asked, which shortens the meeting and increases confidence.

Common Mistakes Custom Home Builders Make With Floor Plan Rendering

Even experienced builders sometimes undermine their own sales process through avoidable rendering mistakes. Recognizing these early can save both time and client trust.

• Using generic stock furniture that doesn’t match the client’s stated style. This creates a disconnect between the presentation and the client’s actual vision.
• Skipping scale verification. A render that looks impressive but is dimensionally inaccurate can cause serious disputes once construction begins.
• Overloading the render with unrealistic lighting or landscaping. This inflates expectations that the finished home cannot match.

• Presenting only one camera angle. A single static image rarely communicates flow as effectively as multiple perspectives.
• Treating rendering as a one-time sales prop instead of an ongoing communication tool. The most effective builders continue using updated renders throughout the design development phase, not just at the first meeting.

Avoiding these pitfalls is often what separates a builder who occasionally uses rendering from one who has built rendering into a repeatable, trust-building sales system.

Expert Tips for Getting the Most Out of Your Rendered Floor Plans

Drawing from established best practices in architectural visualization, here are tips that consistently improve client response rates during pre-design meetings.

1. Ask clients for reference photos before the render is built. This ensures the finished visual aligns with their actual taste rather than a generic template.
2. Build renders in stages and share progress. Clients who see a rough version before the final polished render feel more involved in the design process.
3. Use consistent branding on presentation slides. A cohesive visual identity reinforces professionalism throughout the sales journey.
4. Pair the floor plan render with a short walkthrough narration. Verbally guiding a client through the space, room by room, increases retention of key selling points.
5. Keep a rendering library of past projects sorted by home style. This allows builders to quickly reference similar completed layouts during a live conversation.

Ultimately, these tips work because they treat rendering not as a static deliverable but as an interactive part of the client relationship.

Timing Rendering Into a Realistic Sales Cycle

One practical concern builders raise is whether adding a rendering step slows down an already busy sales process. In practice, the opposite tends to be true when the workflow is planned properly.

• Request rendering early, not last-minute. Builders who loop in their rendering partner as soon as a lead shows serious interest, rather than waiting until the day before a scheduled meeting, avoid rushed turnarounds that can compromise quality.
• Batch similar layouts when possible. If several clients are considering similar floor plans, builders can request base renders in advance and customize finishes per client, which speeds up individual turnaround times significantly.
• Align rendering delivery with meeting scheduling. Confirming the client meeting date before finalizing the rendering request ensures the visual asset is ready with enough buffer time for last-minute adjustments.
• Reuse and adapt previous renders where appropriate. For repeat floor plans or model homes, updating an existing render with new finishes is considerably faster than starting from scratch.

Consequently, rather than adding friction, a well-timed rendering process tends to compress the overall sales cycle by reducing the number of clarification meetings needed after the initial presentation. Builders who treat rendering as a scheduled, repeatable step, rather than a reactive scramble, consistently report smoother client interactions and less internal stress leading up to each pre-design meeting.

How Rendering Reduces Costly Change Orders Later in the Build

One of the most overlooked financial benefits of 3d floor plan rendering for custom home builders is its impact on change order frequency. According to research from the National Association of Home Builders, miscommunication about layout and design intent is among the leading causes of costly mid-construction revisions.

When clients approve a rendered plan before groundbreaking, several things happen:

• Layout misunderstandings are caught digitally, where fixes cost minutes, not thousands of dollars.
• Material and finish decisions are locked in earlier, reducing procurement delays.
• Subcontractors receive clearer visual references, lowering the risk of on-site errors.

As a result, builders who standardize rendering into their pre-design process often report smoother construction phases with fewer client-initiated revisions, which protects both profit margins and project timelines.

The Technology Behind Modern 3D Floor Plan Rendering

Understanding the tools behind the visuals helps builders set realistic expectations with both clients and rendering vendors. Modern rendering workflows typically rely on a combination of the following:

• CAD-to-3D conversion software, which takes the architect’s flat drawing and builds an accurate spatial model.
• Physically based rendering (PBR) engines, which simulate how light interacts with real-world materials such as wood, stone, and glass.
• Real-time rendering engines, increasingly used so builders can rotate and adjust a view live during a client meeting instead of relying only on pre-rendered static images.
• VR and AR walkthrough integrations, which some builders now offer as a premium add-on so clients can “step inside” the home using a headset or mobile device.

Consequently, builders are no longer limited to a handful of static images per project. Instead, many firms now offer interactive walkthroughs that clients can revisit on their own time, which extends the influence of the pre-design meeting well beyond the room it happened in.

That said, not every project needs the full VR treatment. For most custom home builds, a well-executed set of static and animated top-down renders is sufficient to achieve the trust-building outcome discussed throughout this article. Builders should match the technology investment to project scale rather than over-engineering the presentation for every client.

How to Choose the Right Rendering Partner as a Custom Home Builder

Because rendering quality directly affects client perception, selecting the right partner is a strategic decision rather than a purely operational one. When evaluating a rendering provider, custom home builders should consider the following factors:

1. Portfolio relevance – Does the provider have experience with residential custom builds specifically, rather than only commercial or apartment-style projects?
2. Turnaround time guarantees – Can the provider consistently deliver within your sales cycle window, especially during busy seasons?
3. Revision policy – How many rounds of revisions are included before additional charges apply?
4. Material and lighting accuracy – Does the provider verify finishes against manufacturer catalogs, or rely on generic textures that may misrepresent the final product?
5. Communication style – Is the provider responsive enough to accommodate last-minute changes before a scheduled client meeting?

Moreover, builders who establish a long-term relationship with a single rendering partner, rather than switching vendors project to project, often see faster turnaround and more consistent visual quality over time, since the partner becomes familiar with the builder’s typical layouts and client preferences.

Measuring ROI: What Builders Actually Gain from Rendering Investment

Some builders hesitate to add rendering into their pre-design process because of the added cost, so it helps to look at where the return on that investment actually shows up.

• Shorter sales cycles. Clients who clearly understand a layout tend to make decisions faster, which reduces the number of follow-up meetings needed to reach a signed contract.
• Higher close rates on qualified leads. A rendered presentation differentiates a builder from competitors still relying solely on flat blueprints.
• Lower change-order costs. As discussed earlier, catching design misunderstandings before construction begins protects profit margins significantly.
• Stronger referral pipelines. Clients are far more likely to share a polished rendered image on social media or with friends than a technical blueprint, which creates organic marketing value.
• Reduced disputes and rework. Clear visual agreement upfront minimizes the “that’s not what I imagined” conversations that can strain a builder-client relationship mid-project.

When these factors are considered together, the cost of rendering is generally recovered many times over across a single project, particularly on mid-size to large custom homes where a single change order can otherwise run into thousands of dollars.

Comparison: Traditional Sales Presentation vs. Rendering-Led Sales Presentation

This comparison highlights why rendering-led presentations are becoming the default expectation among clients who have already seen the approach used by competing builders.

The Psychology Behind Why Rendered Floor Plans Persuade Clients

It is worth pausing to understand why 3D floor plan rendering for custom home builders works so effectively as a sales tool, beyond simple visual appeal. The underlying reasons are rooted in how people process information and make high-stakes decisions.

• Reduced cognitive load. Reading a 2D blueprint requires clients to mentally translate lines, symbols, and dimensions into a livable space. Rendering removes that translation step entirely, freeing mental energy for actual decision-making rather than interpretation.
• Emotional anchoring. Humans respond more strongly to vivid, concrete images than abstract data. A rendered kitchen with warm lighting and realistic cabinetry creates an emotional anchor that a flat drawing simply cannot replicate.
• Perceived certainty. When clients can see a space clearly, they feel more confident that the builder understands their vision, which directly increases trust in the builder’s broader competence.
• Social validation potential. A polished render is shareable. Clients often send it to family members or design-savvy friends for feedback, which reinforces their own commitment to the decision and indirectly markets the builder’s work to a wider audience.
• Faster mental rehearsal. Rendered walkthroughs allow clients to mentally “live” in the space ahead of time, imagining daily routines like morning coffee in the kitchen or evening relaxation in the primary suite. This rehearsal effect significantly strengthens emotional commitment to the project.

Understanding these psychological levers helps builders present renders more intentionally. Rather than simply displaying an image and moving on, effective builders pause at emotionally significant rooms, ask open-ended questions about how the client imagines using the space, and let the visual do the persuasive work while the conversation stays focused on lifestyle rather than technical specifications.

Adapting Rendering Strategy to Different Client Types

Not every client responds to the same presentation style, so it helps to adjust rendering strategy based on who is sitting across the table.

• First-time custom home buyers often benefit most from side-by-side 2D-to-3D comparisons, since they need reassurance that the render accurately reflects the technical plan they are approving.
• Experienced homeowners building a second or third custom home tend to respond well to comparison views, such as open-concept versus segmented layouts, since they already have strong opinions about what did or did not work in previous homes.
• Design-focused clients appreciate detailed material and lighting accuracy, and may ask specific questions about finishes, so builders should be prepared to reference manufacturer catalogs during the meeting.
• Budget-conscious clients benefit from renders that clearly separate structural layout from optional finish upgrades, helping them understand which visual elements are included in the base price versus available as add-ons.

By tailoring the rendering presentation to these client profiles, builders avoid a one-size-fits-all approach that can feel generic, and instead create a pre-design meeting that feels personally relevant to each family’s specific priorities.

Related Reading on 3D Floor Plan Rendering

If you want to go deeper into how rendering affects different parts of the real estate and construction pipeline, these related resources are worth exploring:

• Learn how 3D floor plan rendering transforms real estate listing performance for agents and developers marketing finished or in-progress homes.
• Curious about budgeting? See whether 3D floor plan rendering pricing scales with square footage so you can plan project costs accurately.
• New to the concept entirely? Start with our foundational guide on what 3D floor plan rendering actually involves.

Frequently Asked Questions

What is 3D floor plan rendering for custom home builders? 3D floor plan rendering for custom home builders is a visualization process that turns a flat architectural layout into a realistic, dimensionally accurate 3D scene, typically including furniture, lighting, and finishes, so clients can understand a proposed home before construction begins.

How long does it take to produce a rendered floor plan? Most rendering partners deliver a completed floor plan render within a few business days, depending on the complexity of the layout and the number of camera angles requested.

Does 3D rendering replace the need for an architect’s blueprint? No. Rendering is built directly from the architect’s blueprint or CAD file; it visually enhances the plan rather than replacing the technical documentation required for permitting and construction.

Why do custom home builders use rendering specifically in pre-design meetings? Pre-design meetings are where trust and contract decisions are formed. Rendering removes ambiguity at this critical stage, helping clients commit with confidence and reducing the likelihood of costly misunderstandings later.

Can rendered floor plans reduce change orders during construction? Yes. When clients approve a rendered layout before groundbreaking, design misunderstandings are caught and corrected digitally, which significantly lowers the risk of expensive on-site change orders.

Is 3D floor plan rendering only useful for large custom homes? No. Builders use rendering across projects of all sizes, since the core benefit, clearer client communication, applies equally to a modest renovation and a large custom estate.

What should a custom home builder look for when choosing a rendering partner? Builders should prioritize a provider with residential-specific experience, a clear revision policy, accurate material and lighting representation, and reliable turnaround times that fit within their typical sales cycle.

How does 3D rendering improve referral generation for builders? Because rendered images are visually compelling and easy to share, clients frequently send them to friends and family for feedback, which extends the builder’s exposure to potential future clients at no additional marketing cost.

Make Rendering Your Standard Pre-Design Practice

Custom home builders who treat 3D floor plan rendering as a core part of their sales process consistently see faster decisions, fewer disputes, and stronger client trust. Rather than leaving clients to interpret abstract blueprints, rendering gives them a clear, emotionally engaging preview of their future home. As competition among builders intensifies, this visual advantage is quickly becoming the expected standard rather than an optional upgrade.

If you’re ready to bring this level of clarity into your own pre-design meetings, and start winning client confidence before the first shovel hits the ground.

Explore our 3D Floor Plan Rendering Services →

That efficiency gain is exactly why rendering has moved from a “nice-to-have” to a standard listing asset.

If you’re evaluating 3D floor plan rendering services for your listings, understanding how floor plan visualization specifically drives performance metrics – not just aesthetics – is the first step toward using it well.

Why Buyers Respond Better to Rendered Floor Plans

Traditional 2D floor plans require a degree of spatial literacy that most buyers simply don’t have. Lines, dimensions, and symbols on a flat page rarely translate into an intuitive sense of how a space actually feels.

3D floor plan rendering closes that gap. Consequently, buyers spend more time engaging with a listing, because they can actually picture themselves inside it rather than decoding it.

• Reduces cognitive load when interpreting room layouts and flow
• Builds emotional connection to a space before a physical visit
• Clarifies scale and proportion that flat plans often misrepresent
• Helps remote or out-of-town buyers commit to a showing with confidence

For a foundational overview, our guide on what 3D floor plan rendering actually involves breaks down the process from raw blueprint to finished visual.

The Psychology Behind Spatial Visualization in Real Estate

Research in consumer behavior shows that buyers make emotional decisions before rational ones. A 3D floor plan helps prospects mentally “move into” a property before visiting it physically.

Additional points:

• Buyers can imagine furniture placement more accurately.
• Families can evaluate whether the layout matches their daily routines.
• Open-plan properties become easier to understand.
• Emotional attachment often develops earlier in the buying process.

This psychological advantage is one reason premium listings increasingly use 3D rendering as a pre-selling tool.

The Direct Impact on Listing Performance Metrics

Rendering isn’t just a design upgrade, it’s a measurable performance lever. Real estate marketing data consistently shows that listings with enhanced visuals outperform text-and-photo-only listings across several key indicators.

These gains compound across a full listing portfolio. As a result, agencies handling multiple properties often see the return on rendering investment scale faster than a single-listing view would suggest.

How 3D Floor Plans Improve Lead Quality

Not every inquiry becomes a buyer. One of the biggest hidden costs in real estate is spending time on unqualified leads.

3D floor plan rendering helps by:

• Eliminating buyers who dislike the layout.
• Setting realistic expectations before property visits.
• Reducing confusion about room sizes.
• Helping investors quickly evaluate floor efficiency.

As a result, agents often spend less time on low-intent prospects and more time with serious buyers.

How 3D Floor Plan Rendering for Real Estate Listings Shortens the Sales Cycle

Because buyers can self-qualify a property remotely, agents spend less time on showings that were never going to convert. This is one of the most underrated benefits of rendering: it filters interest before it ever reaches your calendar.

1. Buyer views the rendered floor plan online
2. Buyer mentally maps the space to their own furniture and lifestyle needs
3. Buyer either books a showing with genuine intent, or moves on without wasting anyone’s time
4. Agent’s showing schedule fills with higher-probability prospects

Reducing Buyer Decision Fatigue

Modern property buyers review dozens of listings every week.

Decision fatigue causes buyers to:

• Delay showings
• Save properties for later
• Forget listings entirely

A rendered floor plan reduces mental effort and makes a property easier to remember, helping it stand out in crowded marketplaces.

Types of 3D Floor Plan Renderings Used in Listings

1. Flat 2D-to-3D Conversion Renders

These take an existing 2D blueprint and add depth, furniture, and material textures, producing a top-down 3D view that’s easy to scan quickly on mobile listings.

2. Isometric Floor Plan Renders

An angled, dimensional view that shows walls and room relationships more clearly than a flat top-down render, popular for multi-room layouts.

3. Interactive 3D Floor Plans

Clickable, rotatable models that let buyers explore a property digitally, often paired with virtual staging for a fuller walkthrough experience.

4. Furnished Concept Renders

Fully staged 3D floor plans showing furniture placement and décor, ideal for empty or under-construction units where buyers need help visualizing livability.

Which Type of Rendering Works Best for Different Property Categories?

This gives readers practical guidance instead of only definitions.

Comparison: 2D Floor Plans vs. 3D Floor Plan Rendering

Pricing naturally varies depending on property size and the number of rendered views required. Our breakdown of how 3D floor plan rendering pricing scales with square footage is a useful reference before budgeting a project.

The Marketing Channels Where 3D Floor Plans Perform Best

Rendered floor plans aren’t limited to MLS listings.

They perform particularly well on:

• Social media advertising
• Email campaigns
• Google Business Profiles
• Property brochures
• Landing pages
• PPC campaigns
• Digital signage
• Investor presentations

Many agencies recover rendering costs simply by reusing the same asset across multiple channels.

Common Mistakes Agencies Make with 3D Floor Plan Rendering

1. Treating it as purely decorative: Rendering is a conversion tool, not just a visual add-on, and should be positioned that way in listing marketing.
2. Skipping accurate dimensions: A visually appealing render that misrepresents scale can create buyer distrust once they visit in person.
3. Using inconsistent style across a portfolio: Mixing rendering styles across listings weakens brand consistency and buyer trust.
4. Ignoring mobile optimization: Since most buyers browse listings on phones, renders that don’t scale well on smaller screens lose their impact.
5. Not reusing the asset: Many agents render once for MLS and never repurpose the same visual for social media, brochures, or email campaigns.

Signs of a Low-Quality Floor Plan Render

Not all renderings improve listing performance.

Warning signs include:

• Incorrect room dimensions
• Unrealistic furniture scaling
• Poor lighting
• Low-resolution textures
• Inaccurate window placement
• Distorted proportions
• Overly saturated colors

Poor rendering can actually damage buyer trust.

Expert Tips for Maximizing Rendering ROI

• Commission renders at the start of a listing campaign, not as an afterthought once photos are already live.
• Request both top-down and isometric views for different marketing channels.
• Pair rendered floor plans with real photography rather than replacing photos entirely.
• Standardize a rendering style guide across your brokerage for brand consistency.
• Track click-through and inquiry data before and after adding renders to isolate their actual impact.

Key Performance Indicators to Measure After Adding Rendered Floor Plans

To determine ROI, agencies should track:

This turns rendering into a measurable marketing investment rather than a creative expense.

Step-by-Step: Adding 3D Floor Plan Rendering to Your Listing Workflow

1. Gather existing floor plan data: Blueprints, CAD files, or even accurate hand-measured sketches work as source material.
2. Choose the rendering type: Decide between flat conversion, isometric, interactive, or furnished concept renders based on the property and audience.
3. Brief your rendering partner clearly: Share brand guidelines, furniture style preferences, and any specific views you need.
4. Review and request revisions: Check dimensional accuracy before publishing, since errors here undermine buyer trust.
5. Deploy across all channels: Publish the finished render on MLS, your website, and social media to maximize its return.

Frequently Asked Questions

What is 3D floor plan rendering for real estate listings?

It’s the process of converting a standard architectural floor plan into a photorealistic or stylized 3D visual, making room layout and flow instantly understandable to buyers browsing a listing.

Does 3D floor plan rendering actually improve listing performance?

Yes. Listings using rendered floor plans typically see longer engagement time, higher click-through rates, and better-qualified buyer inquiries compared to text-and-photo-only listings.

How long does it take to get a 3D floor plan rendering done?

Turnaround varies by rendering type and property size, but most standard floor plan renders are completed within a few business days once accurate source plans are provided.

Is 3D floor plan rendering worth it for smaller properties?

Generally, yes. Even compact listings benefit from clearer spatial communication, and the relative cost is often lower for smaller square footage.

Can 3D floor plan renders be reused beyond the listing itself?

Absolutely. The same render can be repurposed for brochures, social media posts, email marketing, and portfolio presentations, extending its value well past the initial listing.

Do rendered floor plans increase perceived property value?

While rendering doesn’t change the actual property value, it often increases perceived value by presenting the property more professionally and helping buyers better understand the space.

Can 3D floor plans reduce listing bounce rates?

Yes. Listings that provide richer visual information generally keep visitors engaged longer and reduce the likelihood of immediate exits.

Are 3D floor plans useful for commercial real estate?

Absolutely. Commercial buyers and tenants often rely heavily on spatial planning, making rendered floor plans particularly valuable.

Can rendered floor plans help pre-sell new developments?

Yes. Developers frequently use rendered floor plans before construction is completed to secure reservations and early-stage buyers.

Future Trends in 3D Floor Plan Rendering

The next generation of floor plan visualization is moving toward:

• AI-generated furniture staging
• Interactive web-based floor plans
• Augmented reality integration
• Virtual reality walkthroughs
• Real-time customization by buyers
• Personalized room configurations

As these technologies become more affordable, rendered floor plans are expected to become a standard feature rather than a premium upgrade.

Bringing It All Together

At its core, 3D floor plan rendering for real estate listings works because it removes the interpretation burden from buyers and replaces it with instant spatial clarity. That clarity translates directly into longer engagement, better-qualified leads, and a shorter path from listing view to signed offer.

In an increasingly digital property market, buyers expect more than static photos and technical drawings. They want to understand how a home feels before scheduling a visit. 3D floor plan rendering bridges that gap by turning architectural information into an intuitive buying experience, helping agents market properties more efficiently and helping buyers make faster, more confident decisions.

If you’re ready to see these performance gains on your own listings, get a custom 3D rendering quote from JYTOR and turn your next floor plan into a conversion asset.

Partner with 3D Floor Plan Rendering Company →

If you want this handled end to end, our professional 3D floor plan rendering services translate raw blueprints into market-ready visuals without per-square-foot guesswork. Now, let’s unpack how the pricing actually works, where the myths come from, and how to get the best value.

What “Price Per Square Foot” Really Means in 3D Rendering

In construction, “price per square foot” is a reliable metric because materials and labor genuinely scale with area. Rendering is different. A render is a digital asset, so the cost reflects the effort to build and light a scene, not the physical size of the home.

In short, the floor plan rendering price per square foot is more of a rough budgeting reference than a true billing formula. Most studios convert their internal labor estimates into a per-project quote, then some clients reverse-engineer a per-square-foot figure for comparison.

If you’re new to the format itself, this primer on what 3D floor plan rendering actually involves explains how 2D blueprints become dimensional, furnished visuals.

Does Floor Plan Rendering Price Per Square Foot Actually Scale with Size?

Here’s the honest answer: partially, but not the way most people assume.

• Small layouts (studios, 1-bed): Often priced at a flat minimum, so the effective per-square-foot rate looks high.
• Mid-size homes: Hit the “sweet spot” where the per-square-foot figure feels most balanced.
• Large estates and multi-floor builds: Add real modeling time, but economies of scale usually lower the effective per-square-foot rate.

Consequently, a 600 sq ft studio can cost nearly as much as a 1,800 sq ft home, because both require setup, lighting, texturing, and a render pass regardless of footprint.

Quick answer for snippets: Floor plan rendering rarely scales linearly with size. A bigger footprint adds modeling hours, but base setup costs stay fixed, so the price per square foot typically drops as homes get larger.

The Real Cost Drivers Behind Floor Plan Rendering Price

Square footage is just one variable. The factors below usually matter more.

Notice that footage sits near the bottom. That’s the core reason a strict floor plan rendering price per square foot can be misleading.

Pricing Models Compared: Per Square Foot vs Per Project vs Tiered

Different studios package costs differently. Here’s how the common models stack up.

For most developers and listing agents, a per-project quote delivers the clearest value because it reflects what the scene actually demands.

Typical Floor Plan Rendering Price Ranges (2026 Reference)

These ranges are industry-typical estimates for planning purposes, not fixed rates.

Because visuals strongly influence buyer behavior, this spend tends to pay for itself. The National Association of Realtors consistently reports that strong listing visuals shape how buyers evaluate homes, which is why polished renders rarely sit in the “nice to have” column for long.

Step-by-Step: How to Estimate Your Floor Plan Rendering Cost

Follow these steps to build a realistic budget before requesting quotes.

1. Define the deliverable. Decide between 2D, basic 3D, or photorealistic output.
2. Count the views. List every angle and floor you need rendered.
3. Set the detail level. Choose schematic, standard, or premium realism.
4. Clarify furnishing. Note which rooms need staging and which stay empty.
5. Confirm resolution. Match output (web vs print) to your marketing channels.
6. Add revision needs. Estimate how many feedback rounds you’ll realistically use.
7. Request a per-project quote. Then divide by area only if you want a per-square-foot benchmark.

This sequence keeps the conversation focused on scope rather than footprint alone.

Common Mistakes When Budgeting for 3D Renders

Avoid these frequent missteps that inflate cost or disappoint on quality.

• Treating per square foot as gospel. It ignores complexity, the real price driver.
• Underspecifying the brief. Vague requests lead to extra revisions and surprise fees.
• Ordering too many angles. Each view adds cost; prioritize the ones buyers care about.
• Skipping resolution planning. Web-only files won’t print well, forcing costly re-renders.
• Choosing purely on price. The cheapest quote often excludes revisions or realism.
• Ignoring turnaround terms. Rush jobs cost more, so plan timelines early.

Expert Tips to Get the Best Value Per Square Foot

Drawing on real production workflows, these tips stretch your budget further.

• Bundle multiple plans. Submitting several layouts together usually unlocks volume rates.
• Reuse asset libraries. Consistent furniture and material sets cut modeling time.
• Provide clean source files. Accurate CAD or PDF blueprints reduce back-and-forth.
• Lock the brief early. A detailed scope minimizes paid revisions later.
• Match realism to purpose. Pre-sale marketing rarely needs full photorealism everywhere.
• Follow accessibility and layout standards. Aligning plans with recognized building design and space guidelines keeps revisions down and credibility up.

Apply even two or three of these and your effective floor plan rendering price per square foot drops noticeably.

Drawing on real production workflows, these tips stretch your budget further.

• Bundle multiple plans. Submitting several layouts together usually unlocks volume rates.
• Reuse asset libraries. Consistent furniture and material sets cut modeling time.
• Provide clean source files. Accurate CAD or PDF blueprints reduce back-and-forth.
• Lock the brief early. A detailed scope minimizes paid revisions later.
• Match realism to purpose. Pre-sale marketing rarely needs full photorealism everywhere.
• Follow accessibility and layout standards. Aligning plans with recognized building design and space guidelines keeps revisions down and credibility up.

Apply even two or three of these and your effective floor plan rendering price per square foot drops noticeably.

Frequently Asked Questions

Is floor plan rendering price per square foot a real billing method? Rarely. Most studios price per project or per plan, then clients may calculate a per-square-foot figure afterward for comparison. It works as a benchmark, not a true rate.

Why do small floor plans cost almost as much as larger ones? Because setup, lighting, texturing, and rendering happen regardless of size. Those fixed steps make the floor plan rendering price per square foot look higher on small units.

What raises 3D render costs the most? Detail level, furnishing density, number of views, and resolution. These complexity factors influence price far more than square footage alone.

Do larger homes always cost more to render? Usually a bit more in absolute terms, yet the per-square-foot rate often drops thanks to economies of scale on bigger projects.

How can I lower my floor plan rendering price per square foot? Bundle multiple plans, supply clean source files, lock your brief early, and match the realism level to the actual marketing purpose.

What the “Price Per Square Foot” Truth Means for You

So, does 3D rendering scale with square footage? Not really. While larger homes add modeling hours, the floor plan rendering price per square foot is shaped far more by detail, furnishing, resolution, and revisions than by raw footage. Treat per-square-foot figures as a loose benchmark, request per-project quotes, and prioritize scope clarity to control cost.

Ready to turn blueprints into listings that convert? Request a tailored rendering quote that protects your project ROI and get visuals built around your scope, not an arbitrary footprint formula.

Discover 3D Floor Plan Rendering Company →
